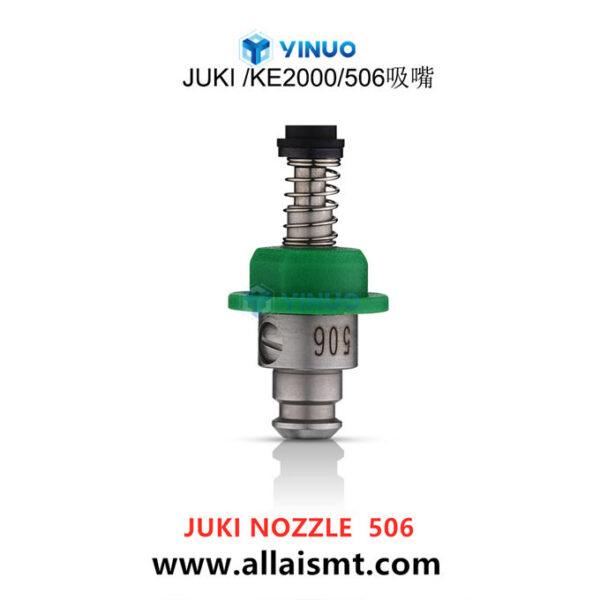

506 JUKI nozzle

There are many types of nozzles for SMT machines on the market, Refer to Material the Nozzles can be classified into tungsten steel, diamond steel, ceramic, plastic steel, plastic, aluminum, iron, etc.

Refer to the shape, there are round holes, square holes, V-shaped, etc.,Not even mention refer to the size.

In this way, How to choose the nozzle become a common problem in SMT industry. Here is a general explanation of how to choose the nozzle of SMT placement machine:

Nozzle material:

1. Tungsten steel nozzle: The tungsten steel nozzle is strong and durable, but it is easy to turn white. If it becomes white, use an oil-based pen to paint, and you can continue to use it.

2. Ceramic nozzle: The ceramic nozzle is never white, but it is brittle and easy to break. Careful use can avoid or reduce the occurrence of breakage.

3. Diamond-steel suction nozzle: strong, easy to use, never whitish, but extremely expensive and not cost-effective.

4. Adhesive nozzle: When the surface of the material is uneven or the material is sticky, it is suitable to choose the rubber nozzle, but the life of the rubber nozzle is not long. It is recommended to buy more rubber nozzles for use when setting the rubber nozzle. When the nozzle tip is worn out, you can directly replace the glue nozzle tip yourself.

Add to wishlist

Categories: JUKI, SMT SPARE PARTS

info@allaismt.com +8613760481664

Get a Free Quote

Description

We are comimitted to establish long-term and friendly partnership with each customer .our specalty lies in quaity products, speedy delivery andreliable services.For Exact Price and Quantity ,and Shipping Address ,please feel free to contact us : info@allaismt.com

5017210A0 NOZZLE ASM. 101 3
E35017210A0 NOZZLE ASM. 101 2
E35027210A0 NOZZLE ASM. 102 2
E3522721000 NOZZLE SLIDER 102 1
E35027210A0 NOZZLE ASM. 102 3
E3076700000 NOZZLE INNER CAP 1
E3083700000 NOZZLE SPRING 1 1
E3521721000 NOZZLE SLIDER 101 1
E35507210A0 NOZZLE ASM.(730) 1
E35007210A0 NOZZLE ASM.(730) 1
E3511721000 NOZZLE INNER 101 1
E3520721000 DUMPER SCREW 12
E3519721000 NOZZLE INNER PIN 12
E3083700000 NOZZLE SPRING 1 1
E3076700000 NOZZLE INNER CAP 1
E3520721000 DUMPER SCREW 12
E3511721000 NOZZLE INNER 101 1
E3519721000 NOZZLE INNER PIN 12
E3514721000 NOZZLE INNER 104 1
E35037210A0 NOZZLE ASM. 103 1
E3544721000 NOZZLE SPRING 104 1
E3523721000 NOZZLE SLIDER 103 1
E3519721000 NOZZLE INNER PIN 12
E3514721000 NOZZLE INNER 104 1
E35047210A0 NOZZLE ASM. 104 1
E3524721000 NOZZLE SLIDER 104 1
E35057210A0 NOZZLE ASM. 105 1
E3075700000 NOZZLE INNER PIN 5 1
E3086700000 NOZZLE SPRING 5 1
E3515721000 NOZZLE INNER 105 1
E3086700000 NOZZLE SPRING 5 1
E3563721000 NOZZLE INNER 203 1
E3573721000 NOZZLE SLIDER 203 1
E3086700000 NOZZLE SPRING 5 1
E3001705000 NOZZLE SLIDER 7 1
E3075700000 NOZZLE INNER PIN 5 1
E3087700000 NOZZLE SLIDER 6 1
E3515721000 NOZZLE INNER 105 1
E3519721000 NOZZLE INNER PIN 12
E3544721000 NOZZLE SPRING 104 1
E3075700000 NOZZLE INNER PIN 5 1
E35537210A0 NOZZLE ASM. 203 1
40011046 NOZZLE ASSEMBLY 500 1
40001339 NOZZLE ASSEMBLY 501 1
40001340 NOZZLE ASSEMBLY 502 1
40001341 NOZZLE ASSEMBLY 503 1
40001342 NOZZLE ASSEMBLY 504 1
40001343 NOZZLE ASSEMBLY 505 1
40001344 NOZZLE ASSEMBLY 506 1
40044239 NOZZLE ASSEMBLY 508C 1
40001345 NOZZLE ASSEMBLY 507 1
E36157290A0 NOZZLE ASSEMBLY 510 1
40010999 NOZZLE ASSEMBLY 500 CVS 1
E36167290A0 NOZZLE ASSEMBLY 511 1
40010995 NOZZLE ASSEMBLY 502 CVS 1
40010996 NOZZLE ASSEMBLY 503 CVS 1
40010997 NOZZLE ASSEMBLY 504 CVS 1
40010998 NOZZLE ASSEMBLY 505 CVS 1
40025165 NOZZLE ASSEMBLY 509 1
40001339 NOZZLE ASSEMBLY 501 1
40001340 NOZZLE ASSEMBLY 502 1
40001342 NOZZLE ASSEMBLY 504 1
40001341 NOZZLE ASSEMBLY 503 1
40001343 NOZZLE ASSEMBLY 505 1
40001344 NOZZLE ASSEMBLY 506 1
40001345 NOZZLE ASSEMBLY 507 1
40021799 NOZZLE ASSENBLY 508A 1
40010995 NOZZLE ASSEMBLY 502 CVS 1
40010996 NOZZLE ASSEMBLY 503 CVS 1
40010997 NOZZLE ASSEMBLY 504 CVS 1
40010998 NOZZLE ASSEMBLY 505 CVS 1
40011046 NOZZLE ASSEMBLY 500 1
40010999 NOZZLE ASSEMBLY 500 CVS 1
