The D-8800A offers consistently high throughput regardless of component type, with single-, dual-, triple-, and quad-span insertion variants. Lead span capability up to 10mm virtually eliminates tedious manual assembly requirements to improve throughput, product quality and output per floor space, while reducing associated labor costs and time requirements to provide greater returns.

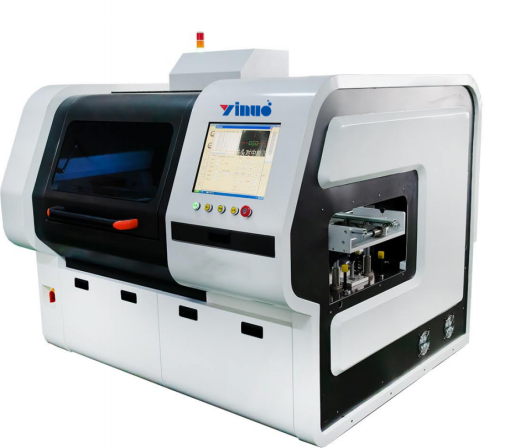

PCB Radial Inserter machine D-8800A
360 Degrees Insertion Angel Radial: Insertion heads are servo-driver for precise and rapid component insertion. The insertion tooling may be rotated from 0 degree to 360 degrees in 1 degree increments

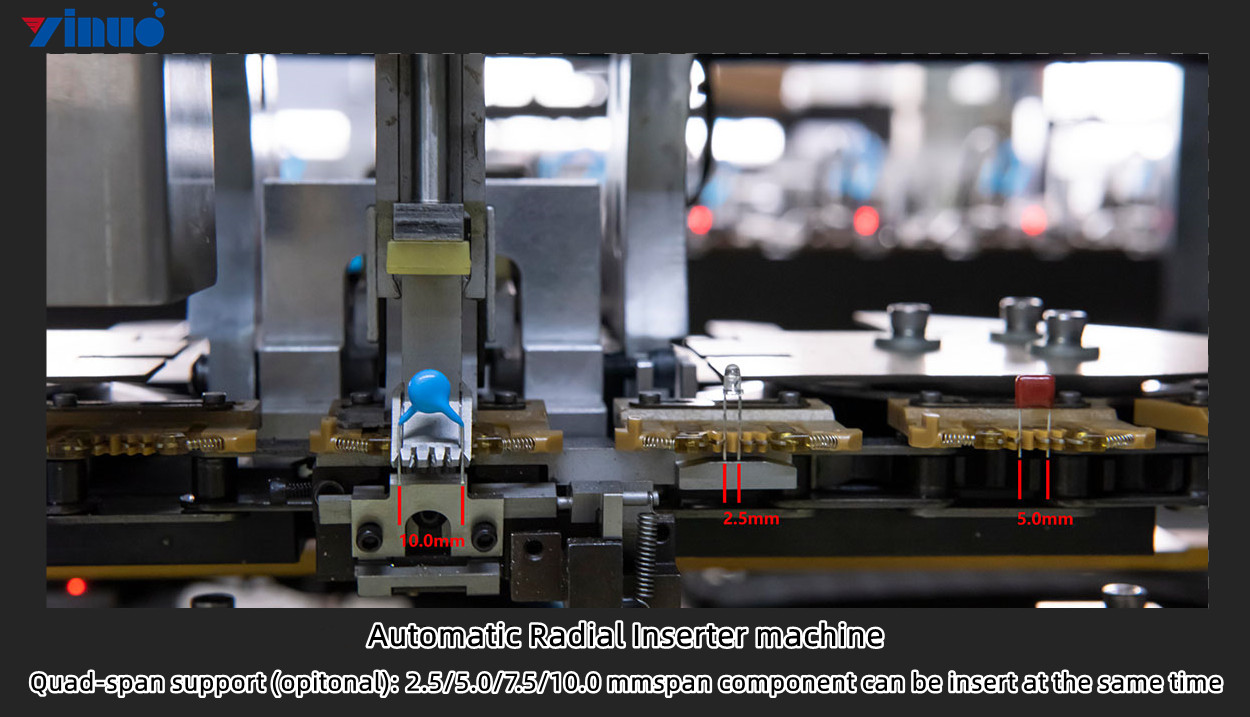

| 1)four Span 2.5/5.0/7.5/10.0mm |
| 2) 18000 CPH,actual speed 12000 CPH |
| 3) Insert direction:0° -360°, 1°increasment |
| 4) Servo motor drived insertion head（13.0mm）and clinch base “N” type. – |
| 5) Components available:Capacitor, Transistor, LED lights, Key Switch, standard tape packed radial leads components |
| 6)Core Machine Size (LxWxH)1800x1600x1800mm, |
| 7) Machine Weight:1000KG – |
| 8) Power supply:220V, AC (single phase) 50/60 HZ – |
| 9) Air pressure:0.6MPA;0.3M3/MIN – |
| 10) Circumstance temperature: 10° C. to 35° C. – |
| 11) PCB Size:(Min)50 mm x50mm、(Max)400mm x 280mm – |
| 12) PCB thickness:0.79-2.36MM – |
| 13) Clinch Length:1.5-2.2MM – |
| 14) Clinch degree: 10-35 degree – |
| 15) Coordinate correction:Machine vision systems – |
| 16)Non rotary table – |
| 17) Machine vision caliberation systems |
| 18) Control System:English or Chinese version interface |
Radial Inserter machineauto insertion machine: Radial insertion

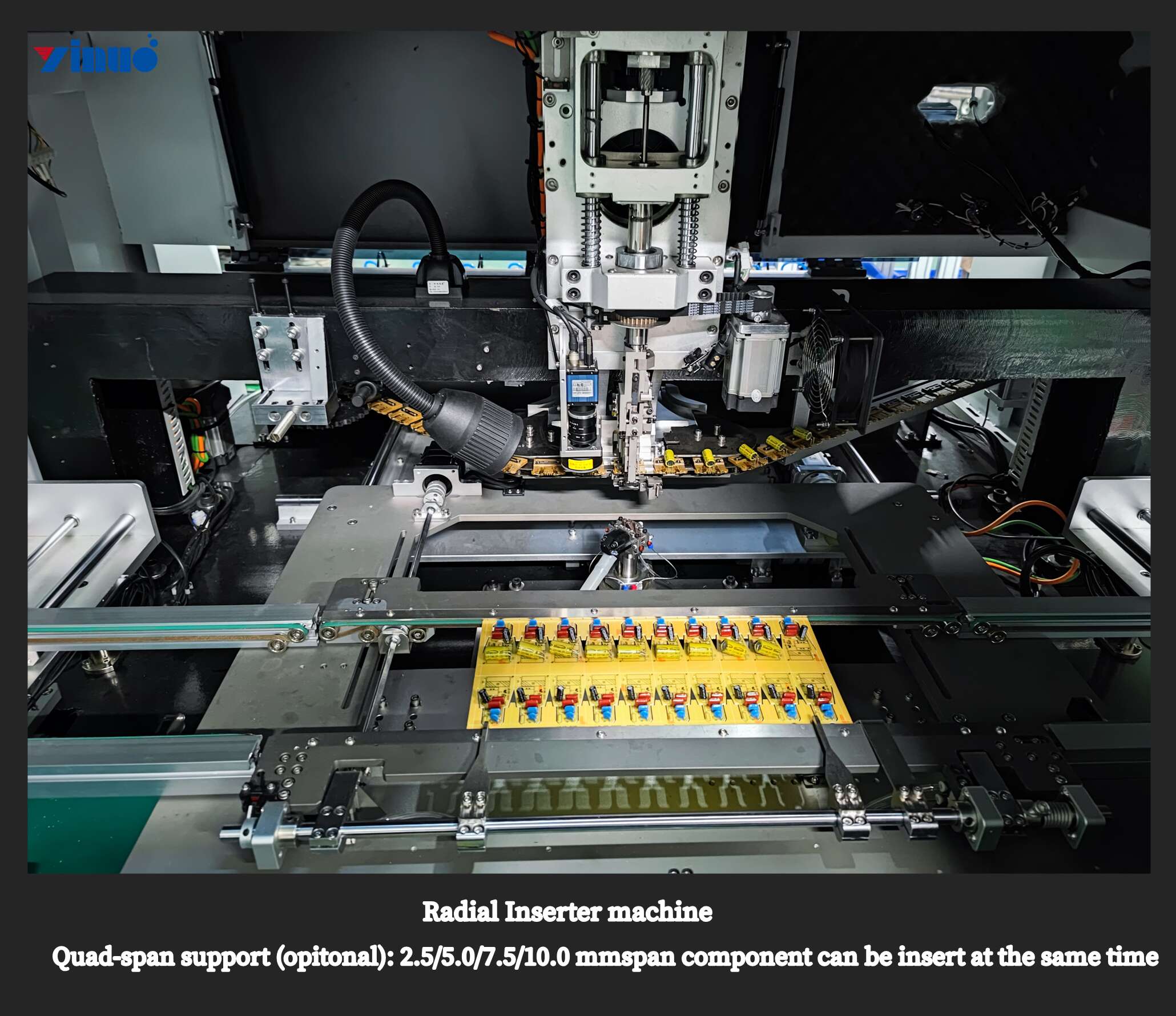

A radial inserter takes radial leaded through-hole components from a reels which are fed into dispensing heads that cut the component from the reel and place it onto the chain in sequence of the order of insertion. The component is brought to a component transfer assembly behind the insertion head and is transferred to the insertion head, then inserted into the board while a clinch assembly underneath cuts and bends the leads opposite to each other.
Radial Insertion Machine • Flexible performance with lead span capabilities from single to quad-span
• Multiple clinch configurations for standard and high-density applications
Radial Component Specifications
Span: 2.5/5.0/7.5 10.0mm
Low maintenance feeder technology
Insertion Directions: 0°,90°,180°,270°
