External dimensions:355*320*568mm |
Base position:A: 33mm; B: 35mm. |
Adjustable width:50-230mm |
Groove depth:7mm |
Slot width:7mm |
Pitch:10mm |
Number of slots:50 |
Weight:4.52Kg |

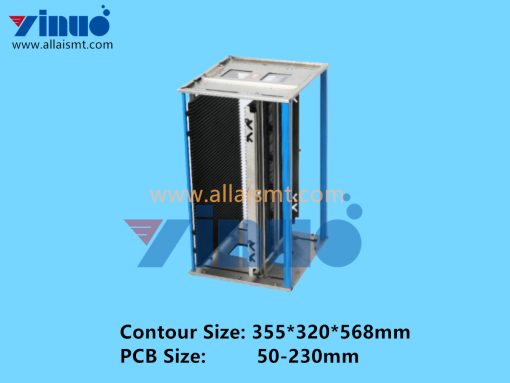

E230 ESD PCB Magazine Rack 355*320*568
Base material | Fixing | Max. | Contour size | Adjustable Width | Ref. Position | Guide slot | PCB | Weight | |||||
method | Temp. | mm | mm | mm | mm | Slot | kg | ||||||
L | W | H | A | B | Depth | Width | Pitch | ||||||
Metal | Gear | 80°C | 355 | 320 | 568 | 50-230MM | 33 | 35 | 4 | 7 | 10 | 50 | 4.52 |
SKU: E230 ESD PCB Magazine Rack 355*320*568
Categories: CONSUMABLES & TOOLS, ESD Magazine
Tags: SMT BOARD, SMT FEEDER, SMT FEEDER PARTS, SMT FILTER, SMT MOTOR, YAMAHA SMT MACHINE, YAMAHA spare parts
