External dimensions:355*320*563mm |
Base position:A: 34mm; B: 34mm. |
Adjustable width:25-254mm |
Groove depth:3mm |
Slot width:7mm |
Pitch:10 mm |
Number of slots:50 |
Weight:4.5Kg |

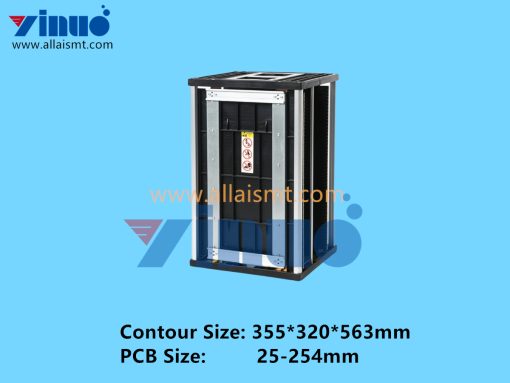

E2542 ESD PCB Magazine Rack 355*320*563
Base material | Fixing | Max. | Contour size | Adjustable Width | Ref. Position | Guide slot | PCB | Weight | |||||
method | Temp. | mm | mm | mm | mm | Slot | kg | ||||||
L | W | H | A | B | Depth | Width | Pitch | ||||||
Metal | Gear | 80°C | 355 | 320 | 563 | 25-254MM | 34 | 34 | 3.5 | 5 | 10 | 50 | 4.5 |
SKU: E2542 ESD PCB Magazine Rack 355*320*563
Categories: CONSUMABLES & TOOLS, ESD Magazine
Tags: SMT BOARD, SMT FEEDER, SMT FEEDER PARTS, SMT FILTER, SMT MOTOR, YAMAHA SMT MACHINE, YAMAHA spare parts
