External dimensions:463*400*563mm |
Base position:A: 34mm; B: 34mm. |
Adjustable width:80-330mm |
Groove depth:3.5mm |
Slot width:5mm |
Pitch:10mm |
Number of slots:50 |
Weight:7.83Kg |

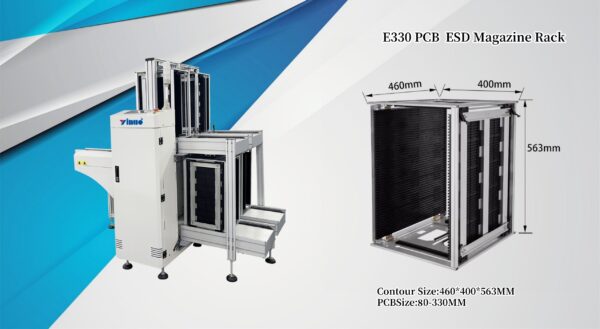

E330S ESD PCB Storage Magazine Rack 460*400*563
Base material | Fixing | Max. | Contour size | Adjustable Width | Ref. Position | Guide slot | PCB | Weight | |||||
method | Temp. | mm | mm | mm | mm | Slot | kg | ||||||
L | W | H | A | B | Depth | Width | Pitch | ||||||
Metal | Gear | 80°C | 460 | 400 | 563 | 80-330MM | 34 | 34 | 3.5 | 5 | 10 | 50 | 7.83 |
