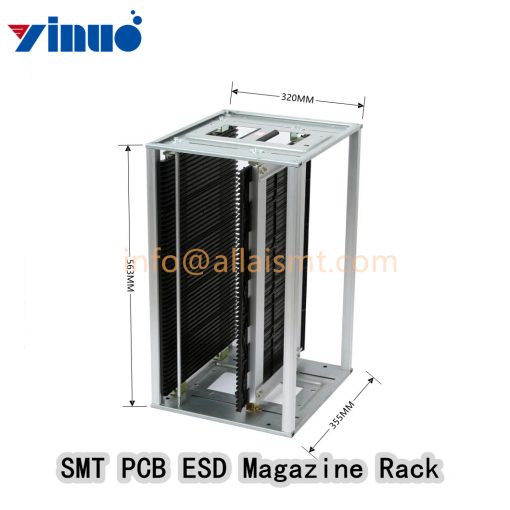

SMT ESD Magazine Rack Description:
The SMT magazine rack is designed for PCBs manufacture, assembly, storage and transfer。 Adjustable through screws,gear adjustment. Common type (60°C) and heat-resistance type(120°C ,160~200°C) are available. Surface resistance: 104~106 ohm. Base: P-Conductive PS, M-Zincification Iron Adjustment: G-Gear track adjustment, S-Screw adjustment Max tolerant temperature: 60°C,120°C,160~200°C different material PCB slots:The number of the SMT magazine rack Can accommodate PCBs
|
Model |
Ref Position(mm) | weight | Gard guide(mm) | Outline Dimension(mm) | Heat-resistan Temperature | PCB Size(mm) | ||||||||
| A | B | C | D | E | P | L | W | H |
AJ |
|||||
| E8801A | 34 | 34 | 6KG | 355 | 3.5 | 5 | 10 | 355 | 320 | 563 | 120℃ |
50-250 |
||
We are comimitted to establish long-term and friendly partnership with each customer .our specalty lies in quaity products, speedy delivery andreliable services.For Exact Price and Quantity ,and Shipping Address ,please feel free to contact us : info@allaismt.com
