A PCB Magazine or PCB Rack is made of volume conductive polypropylene and metal, which is used to transport the PCB boards for automated assembly lines. The anti-static PCB magazines racks are an ideal aid in the production, storage and transportation of PCBs. The strong and robust polypropylene sidewall and metal frame guarantee that these PCB magazines racks are durable, which last very long time .EQUIPMENT AND PRODUCTS FOR ESD PRODUCTIONN LINE
PCB Magazine
ESD PCB Magazine Rack
SMT PCB Magazine Rack
SMT ESD PCB Magazine

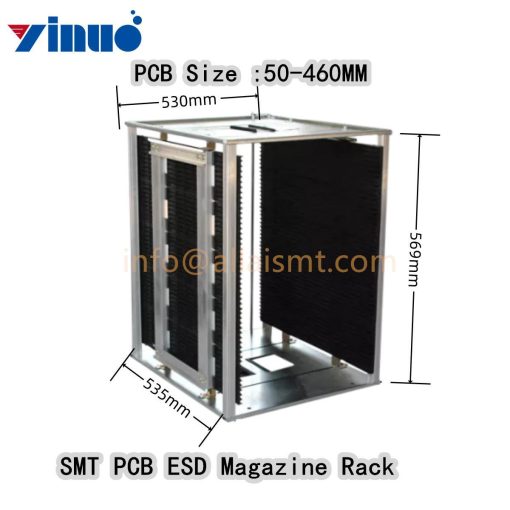

ESD Magazine for SMT Equipment.The SMT magazine rack is designed for PCBs manufacture, assembly, storage and transfer。 Adjustable through screws,gear adjustment. Common type (60°C) and heat-resistance type(120°C ,160~200°C) are available. Surface resistance: 104~106 ohm.
| Model | Ref Position(mm) | weight | Gard guide(mm) | Outline Dimension(mm) | Heat-resistan Temperature | PCB Size(mm) | ||||||||
| A | B | C | D | E | P | L | W | H | AJ | |||||
| E8804 | 34 | 37 | 13KG | 535 | 4 | 5 | 10 | 535 | 530 | 570 | 85℃ | 120℃ | 220℃ | 50-460 |
We are comimitted to establish long-term and friendly partnership with each customer .our specalty lies in quaity products, speedy delivery andreliable services.For Exact Price and Quantity ,and Shipping Address ,please feel free to contact us : info@allaismt.com
