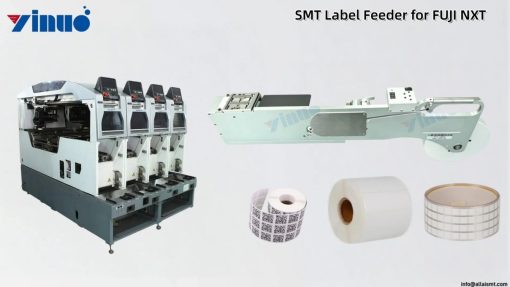

The FUJI NXT 56mm SMT Label Feeder-Auto Barcode & Serial Labeling is a pick-and-place peripheral feeding module that automatically peels off and feeds self-adhesive labels such as barcodes, QR codes, serial numbers, and quality inspection labels to the FUJI NXT pick-and-place nozzles. Also known as an SMT label feeder, this module can be directly mounted on the FUJI NXT feed tray and can handle paper, PET, polyester film, and anti-static labels up to 56mm wide.
Compatible FUJI NXT platforms: NXT III, NXT IIIC, NXT II, NXTR S, and NXTR. Mounts on standard intelligent feeder slots.
Compatible label materials: paper (coated/uncoated), PET gloss, Mylar matte, anti-static film, synthetic paper. Label width: 5-56mm. Backing paper: 0.05-0.12mm thickness.
Working Principle
A label roll is mounted on the unwind spool of this SMT label feeder. A stepper motor drives the liner through a peeling blade at the front,the label separates from its backing at the peel edge and advances to a fixed presentation position facing upward toward the FUJI NXT placement nozzle. A fiber optic sensor detects the label edge and signals the motor to stop, holding the label at precisely the pick coordinate. After nozzle pickup, the motor advances the next label, and the spent liner is collected on the motor-driven rewind spool. Feed rate: 3-9 m/min, operator-adjustable via the feeder’s onboard controller. Placement repeatability: ±0.25mm.
-
Front-push peel minimizes narrow-label drift: rear-peel feeders cause misalignment on labels narrower than 10mm. This SMT label feeder positions the peel blade at the front, reducing the label-to-pick distance and achieving ±0.25mm placement accuracy.
-
Stepper-driven consistent feed: the unwind and rewind motors are synchronized, maintaining constant liner tension at 3-9 m/min. No liner slack, no breakage, no feed interruption during continuous operation.
-
Plug-and-play NXT compatibility: mounts directly on the FUJI NXT intelligent feeder slot. Recognized by the NXT placement system as a standard feeder, no external controller or software patch required.
Application Scenarios
PCB serialization and traceability: SMT label feeder applies serial number and QR labels to each PCB before or after placement,used in automotive ECU, medical device, and aerospace manufacturing where full traceability is required.
Component barcode labeling: applies barcode labels to large IC packages, modules, and odd-form components on the FUJI NXT line,replacing manual hand-labeling stations.
QC pass/fail tagging: prints and applies pass/fail labels after optical inspection,automated labeling eliminates operator misplacement.
Multi-product changeover: stored feed profiles support quick switchover between label widths (5mm QR codes to 56mm serial plates),profile recall via the NXT host interface without mechanical adjustment.
