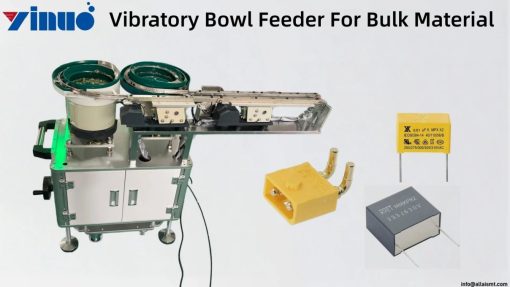

A High-Speed Bulk Vibratory Bowl Feeder with Linear Track is a high-speed bulk component feeding system that sorts, orients, and delivers loose bulk parts — screws, clips, springs, terminals, pins, and odd-form metal components — to automated pick-and-place or insertion stations. The Vibratory Bowl Feeder uses adjustable high-frequency vibration to separate and orient bulk components into single-file alignment, while the integrated Linear Track advances oriented parts to the pick position with jam-free anti-groove guidance. The high-speed system delivers up to 120 PPM with ±0.3mm positioning accuracy,a combination of bowl feeding capacity and linear track precision that eliminates the jams and orientation drift of bowl-only feeders.
Unlike tape feeders and tube feeders,which require components pre-packaged on reels or in plastic sticks,a Vibratory Bowl Feeder accepts loose bulk parts directly from the supplier’s bag. No packaging cost. No reel changeover downtime. A single bowl feeder fill holds up to 1.5 million small parts,compared to 3,000–5,000 per tape reel,meaning a high-speed vibratory bowl feeder feeding M3 screws at 120 PPM can run over 200 hours without refill. When multiple part types share a bowl feeder line, the operator swaps the bowl track in under 10 minutes,no re-spooling, no splicing,keeping the vibratory bowl feeder running across mixed-model production without the handling overhead that tape and tube systems impose.
Why Add a Linear Track?
Precision Alignment: Acts as a mechanical filter, achieving 99.8% correct orientation and eliminating downstream jams.
Steady Buffering: Converts chaotic vibration into smooth flow, ensuring ±0.3mm positional stability at 120 PPM.
Flexible Layout: Customizable length (up to 1000mm) for seamless integration with robotic arms and complex assembly lines.
Not Just Feeders. Nozzles, Too — Custom-Made for Your Components.
Standard nozzles struggle with odd-form parts: vacuum leaks, dropped picks, pick-fail rates above 5%. Send us your component samples. We’ll machine a nozzle matched to your part’s geometry — ceramic, tungsten carbide, or rubber — and dial the pick-fail rate below 0.5%.
Feeders and nozzles ship together. 2–4 weeks, one delivery, one freight charge.
FAQ
Q: Are you a factory or a trading company?
A: Your feeder, from requirements analysis and prototype making to mass production, is all completed in Shenzhen—no middlemen involved. We customize according to your machine model and component specifications, and manually cut the bowl rail and rail adapter according to the sample parts you provide. You can request a video visit to the factory or send samples for testing at any time.
Q: Which SMT brands do you support?
A: ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, Samsung. We have corresponding rail adapters for most mainstream brands. If your machine brand is not listed, please send us your machine model, and we will confirm compatibility within 24 hours.
Q: What is the lead time for customized feeders?
A: Tag feeders and tube feeders: 2-4 weeks; Vibratory feeder feeders (requires customized bowl rails): 5-7 weeks. Samples: 5-7 working days. Rush orders can be compressed to 2 weeks (additional rush fee).
Q: What are the payment terms?
A: 30% deposit, 70% due before shipment. T/T wire transfer and L/C are accepted. Monthly settlement is negotiable for existing customers.
Q: What is the minimum order quantity?
A: 1 unit. Customized feeders do not accept large-volume orders. You will need to place a bulk order after you are satisfied with one sample unit for testing.
Q: Who are your main clients?
A: Huawei, Foxconn (Hon Hai), VTech, Sumitomo Electric Industries, KEMET, Vishay, Bosch, and Canon. These clients use our feeders in their SMT production lines for consumer electronics, automotive electronics, and communication equipment.
Q: What if there are quality problems?
A: 12-month free warranty. Replacement parts or feeders will be shipped within 3 business days (DHL/FedEx express). We will test the feeders on-machine and record a video before shipment. Shipment will only proceed after the customer confirms satisfaction.
