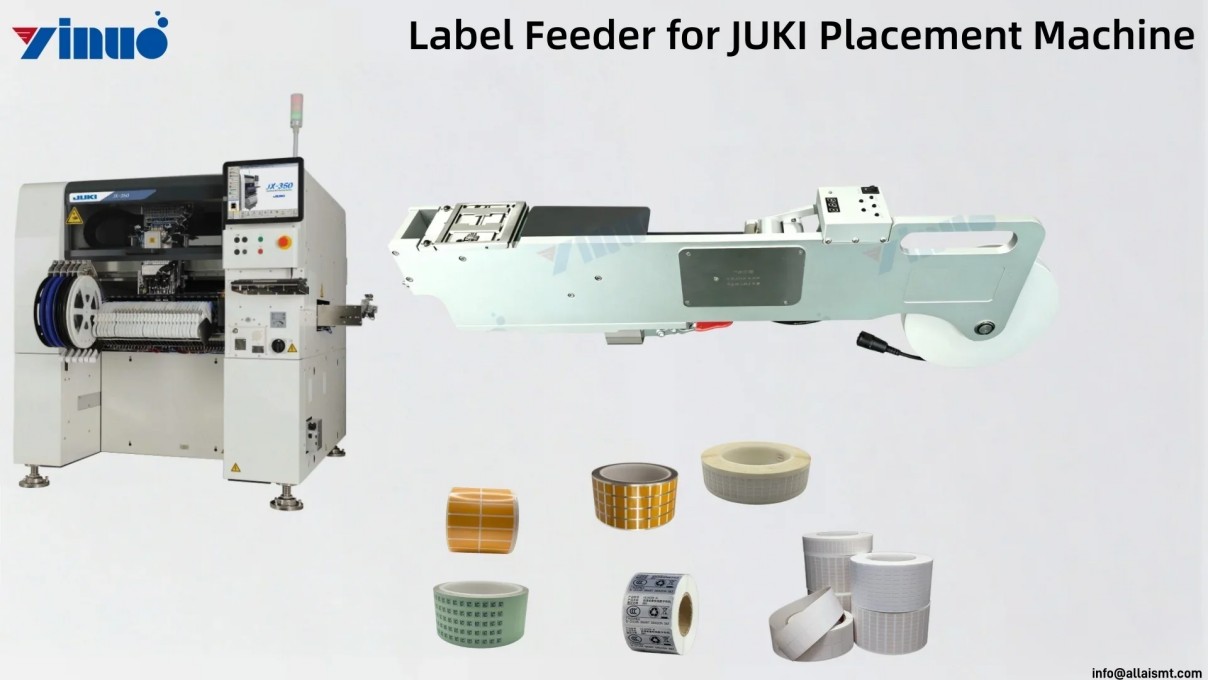

JUKI Label Feeder for PCB High-Temperature Protective Stickers
The JUKI Label Feeder for PCB High-Temperature Protective Stickers is a specialized tape feeder that mounts into standard JUKI pick-and-place machine feeder slots. It presents adhesive labels to the placement head instead of electronic components, allowing the machine to apply PCB protective stickers automatically during the assembly cycle.
This JUKI label feeder handles high-temperature protective stickers designed to survive solder reflow and wave soldering processes. Common applications include thermal insulation pads, EMI shielding stickers, gold finger protective tape, barcode labels, and fiducial markers. Labels are supplied on liner-backed rolls; the feeder peels the label from the liner and presents the exposed adhesive surface to the placement nozzle.
By integrating sticker application into the pick-and-place program, the JUKI label feeder eliminates manual labeling stations and keeps the full assembly process on one machine line.
Key Features
| # | Feature | Benefit |
| 1 | High-temperature sticker compatible | Applies polyimide, PET, and aluminum foil labels that survive reflow up to 280°C |
| 2 | Standard JUKI slot mount | Drops into any JUKI RS, KE, or FX series feeder slot — no machine modifications |
| 3 | Mechanical peel plate | Clean separation of label from liner; vacuum hold-down prevents label drift |
| 4 | Programmable placement | Same coordinate programming as component placement — no additional software |
| 5 | 5–50 mm label size range | Covers small fiducial markers up to large thermal pads and shielding stickers |
| 6 | Liner waste rewind | Spent liner rolls up automatically; keeps the line clean and reduces downtime |
Test Video for JUKI Series Feeders
What We Do for Your SMT Production Line?
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.
Tag and Tube Feeders: 4–7 weeks.
MOQ: 1 unit. We support single-unit testing on your production line before scaling to mass production.
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
