Performance of hardware:
1.Support all the WINDOWs software platforms; USB-Key cryptographic function;
2.Brand-new dual power supply: type 7 (AAA) battery; power supply by USB (Remark: Power can be supplied after inserting into the USB port of the computer.)
3.The fifth generation of technology of KIC; launched in the market in 2012;
4.24 months ’warranty period for the hardware.
Function of software:
1. Brand-new Profiling Software platform;
2.Standard curve combination function; automatic comparison technology is employed to avoid omission and error resulting from artificial comparison.
3.Standard SPC & Cpk adopts automatic SPC boundary diagram and Cpk computation.
4.Optimization of standard process curve; capable of setting temperature automatically (Navigator Power-Key).
Model for optimization of process curve: (Actual test is unnecessary.)
· The optimum process (process center) and / or change the temperature manually; forecast the process changing result;
· The highest speed (production speed) and / or change the temperature manually; forecast the process changing result;
· Minimum power consumption (minimum electric quantity) or / and change the temperature and speed manually; forecast the process changing result;

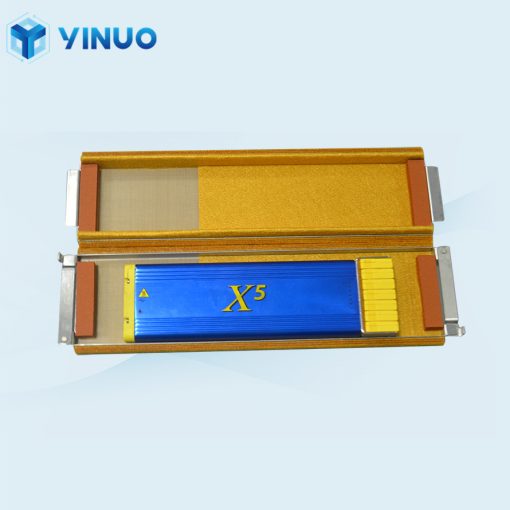

X5 Main technical parameters
System accuracy: ± 0.5 ℃
Resolution: 0.1 ℃
Internal operating temperature: 0 ℃ to 85 ℃
Sampling frequency: 0.1 to 10 per second
Data point: 224,640
PC connection: USB 2.0 (Std-A / Mini-B)
Power: (3) AAA batteries or USB cable when connected to a computer
Frequency of wireless receiver (RF): 433.92MHz
Thermocouple compatibility: Type K, Standard
7, 9, 12-channel: Type K, Standard
Dimension (L x W x H mm):
7-channel: 206.0 x 60.0 x 17.0
9-channel: 206.0 x 75.0 x 17.0
12-channel: 206.0 x 98.0 x 17.0
Insulation cover: Refer to the specifications in the statement on parameters of temperature resistance of insulation cover
