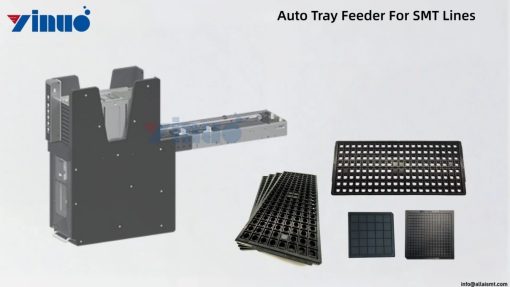

Precision JEDEC Tray Feeder for SMT pick-and-place machines. Tray Feeder automatically pushes BGA, QFP, LQFP, TQFP, and other IC components packaged in matrix trays (waffle boxes) from the hopper to the pick-and-place machine’s pick-and-place position, tray by tray. It can load 10-30 trays at a time, automatically ejecting the empty tray and feeding in the next tray after each pick-and-place operation, allowing for continuous production without interruption. Tray Feeder boasts a repeatability accuracy of ±0.1mm and is equipped with an automatic empty tray return bin. This solves the downtime problem caused by frequent manual replacement of IC trays.
Not Just Feeders. Nozzles, Too — Custom-Made for Your Components.
Standard nozzles struggle with odd-form parts: vacuum leaks, dropped picks, pick-fail rates above 5%. Send us your component samples. We’ll machine a nozzle matched to your part’s geometry — ceramic, tungsten carbide, or rubber — and dial the pick-fail rate below 0.5%.
Feeders and nozzles ship together. 2–4 weeks, one delivery, one freight charge.
FAQ
Q: Are you a factory or a trading company?
A: Your feeder, from requirements analysis and prototype making to mass production, is all completed in Shenzhen—no middlemen involved. We customize according to your machine model and component specifications, and manually cut the bowl rail and rail adapter according to the sample parts you provide. You can request a video visit to the factory or send samples for testing at any time.
Q: Which SMT brands do you support?
A: ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, Samsung. We have corresponding rail adapters for most mainstream brands. If your machine brand is not listed, please send us your machine model, and we will confirm compatibility within 24 hours.
Q: What is the lead time for customized feeders?
A: Tag feeders and tube feeders: 2-4 weeks; Vibratory feeder feeders (requires customized bowl rails): 5-7 weeks. Samples: 5-7 working days. Rush orders can be compressed to 2 weeks (additional rush fee).
Q: What are the payment terms?
A: 30% deposit, 70% due before shipment. T/T wire transfer and L/C are accepted. Monthly settlement is negotiable for existing customers.
Q: What is the minimum order quantity?
A: 1 unit. Customized feeders do not accept large-volume orders. You will need to place a bulk order after you are satisfied with one sample unit for testing.
Q: Who are your main clients?
A: Huawei, Foxconn, Flex, BYD, Luxshare, Delta Electronics, Continental, and Pegatron. These clients use our feeders in their SMT production lines for consumer electronics, automotive electronics, and communication equipment.
Q: What if there are quality problems?
A: 12-month free warranty. Replacement parts or feeders will be shipped within 3 business days (DHL/FedEx express). We will test the feeders on-machine and record a video before shipment. Shipment will only proceed after the customer confirms satisfaction.
