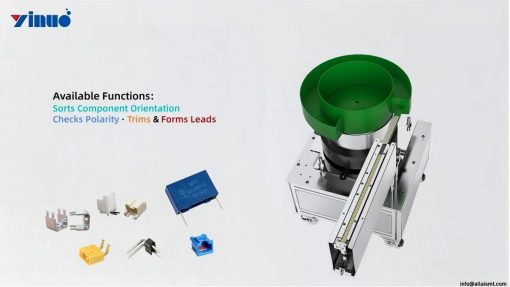

SMT Odd-Form Component Vibratory Bowl Feeder

SMT Odd-Form Component Vibratory Bowl Feeder is a bulk component feeding station used to orient, singulate, and deliver loose odd-form components to pick-and-place or insertion machines. Also referred to as an odd-form vibratory feeder, this SMT vibratory bowl feeder uses electromagnetic coil-driven spiral bowl climbing with CNC-machined sorting gates to orient irregular components that cannot be fed by standard tape, tray, or tube feeders. Each bowl is custom-profiled to one component type per customer-supplied sample. One frame supports 1-4 independently driven bowls.

Bulk components are loaded into this vibratory bowl feeder, where each bowl is driven by an AC electromagnetic coil motor (100/220V AC, PWM 1% increments). The coil generates sinusoidal vibration, causing components to climb a spiral track CNC-machined into the bowl wall. During ascent, mechanical sorting gates perform multi-stage orientation: width-gating rails reject oversized parts, polarity gates flip or divert misaligned components back into the bowl for recirculation. Correctly oriented components pass an optional optical sensor for final verification, then arrive at the pick window at 0.8 sec/pcs. Up to 10 speed profiles are stored per bowl on the PWM controller. The bowl orientation rate exceeds 98% after initial sample profiling.

• Custom-profiled per component sample: each bowl track and sorting gate set is CNC-machined to the customer-supplied component geometry. Bowl re-profiling for a new part type costs 25-35% of a new bowl with 7-10 day turnaround.
• One frame, 1-4 independent bowls: this SMT vibratory bowl feeder supports up to four bowls on a single 760×460×910mm floor-standing unit, each with its own motor, PWM controller, and output track — bowls run simultaneously, one feeds while another refills.
• Eliminates manual hand-placement: odd-form components that cannot be tape-packaged normally require manual placement. The vibratory feeder delivers oriented parts directly to the pick window, allowing one operator to oversee 3-4 lines instead of 1 per line.
• Optical polarity verification: optional through-beam sensors verify correct orientation at the track exit — misoriented parts trigger automatic re-feed without operator intervention.
