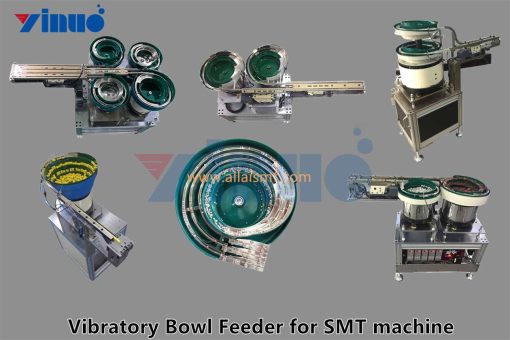

SMT vibratory bowl feeder mainly use to loading the loose component online on the SMT application, it can connect the SMT mounter for automated online feeding or connect the robot for automatic production for replace the artificial
| 1 | Component type | Electronic components, hardware,plastic parts, connectors ， terminal/safety capacitor/switch/transformer/hardware parts |
| 2 | Component size | 3*3~50*50mm |
| 3 | Component weight | 10g-300g |
| 4 | Vibratory feeder material | Loose component and specified vibratory bowl feeder material |
| 5 | feeder type 1 | Multiple layer multiple tray vibratory bowl for feeder,can feeder different type component from different layer |
| 6 | feeder type 1 | Single layer multiple tray vibratory bowl for feeder,can feeder different type component from different tray |
| 7 | feeder transfer type | Transmission of vibration |
| 8 | Positioning way | fiber sensors |
| 9 | Distinguish the polarity | Optional |
| 10 | Cutting lead foot | Optional |
| 11 | Power | 220V |
| 12 | Air pressure | 0.4~0.6Mpa |
| 13 | Operation way | Keys operation |
| 14 | Signal connection | SMEMA port |
| 15 | Communication mode | I/O port or independent control |
| 16 | Control way | PLC control system |
| 17 | Drive mode | Pipe coil drive |
| 18 | Vibratory feeder speed | 0.8 sec. |
| 19 | feeder precision | ±0.5mm |
| 20 | feeder test | Achieve 2 hours of continuous feeder without abnormal |
| 21 | Aging Test | No abnormality after continuous operation for 48 hours |
| 22 | Life time | About 5 years |
| 23 | Dimension 1 | Single layer vibratory bowl feeder with 2 tray: 1120*460*910mm 160kg ; single layer vibrator bowl feeder with 1 tray:760*460*910mm 190kg |
| 24 | Dimension 1 | Multiple vibratory bowl with 2 layer: 800*460*910mm 220kg |
