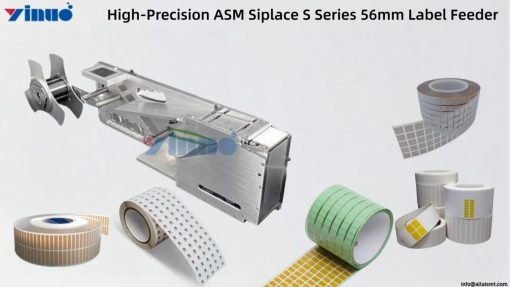

ASM SIPLACE S Series 56mm Label Feeder | Automated Label Placement for SMT Lines
The ASM SIPLACE S-Series 56mm Label Feeder is a dedicated feeding module designed for SMT pick-and-place machines, automating the peeling, positioning, and feeding of self-adhesive labels. It allows the placement head to pick up labels and attach them to the PCB board like standard components, eliminating manual labeling. Key specifications: 56mm label tape width, compatible with SIPLACE D/H/X series platforms.
This feeder can handle a variety of roll materials besides standard paper labels: FPC reinforced steel plates, polyester film tape, foam pads, dustproof mesh, high-temperature tape, and various adhesive films. A single label feeder can cover all material sizes within its maximum width range and supports single-row and multi-row configurations, maximizing machine utilization across different production batches.
What is the ASM SIPLACE Label Feeder? How does it work?
The SIPLACE label feeder converts standard self-adhesive labels into a pick-and-place machine-compatible format. The feeding mechanism automatically peels the label from the backing strip and delivers it to the preset pick-up position. The placement head then picks up the label and places it onto the PCB board according to preset coordinates, operating exactly as it would for SMD components.
Technical Specifications
| Parameter | Value | Unit | Notes |
| Tape width | 56 | mm | Standard label strip width |
| Part number (S Series) | 00141095 | — | OEM ASM SIPLACE |
| Part number (X Series) | 00141276 / 00141296 | — | Smart Feeder X variant |
| Label width range | 50-55 | mm | Compatible label dimensions |
| Pick position repeatability | ±0.1 | mm | Machine-dependent |
| Feed cycle time | <0.6 | seconds | Per label at full speed |
| Power supply | Contactless inductive | — | Smart Feeder X: no physical pins |
| Data transmission | Wireless / Contactless | — | Real-time feeder status |
| Compatible label types | Adhesive strip, die-cut | — | Standard label tape rolls |
| Empty tape detection | Integrated sensor | — | Software alert at N-10 labels |
| Hot-swap capability | Yes (Smart Feeder X) | — | Replace without line stop |
| Warranty | 12 | months | OEM certified |
How to Order a Custom Feeder
Tell us your machine model, feeder type, and component specs. We confirm feasibility within 24 hours.
Our engineering team sends a spec sheet with dimensional drawings, price, and lead time — within 48 hours.
Mount the sample on your machine, test feeding speed and pick accuracy. If it doesn’t meet spec, we revise and resend — free of charge.
DHL/FedEx express (3–5 days) or sea freight (15–25 days). Every unit ships with a 12-month warranty.
