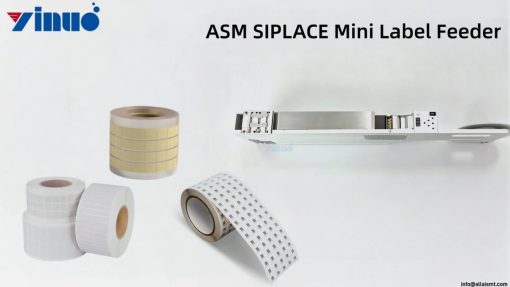

ASM SIPLACE S Series Mini Label Feeder

The Yinuo Mini label feeder is a compact feeding module designed for ASM SIPLACE S Series pick-and-place platforms, purpose-built for narrow-label applications. It automates the peeling, indexing, and presentation of small adhesive labels — barcodes, QR codes, serial numbers, date codes — so the placement head handles them like standard SMD components. Key specs: 32mm label tape width, compatible with SIPLACE S/D/HS platforms, S-series mechanical interface, under 600g total weight.

Roll-fed material compatibility: paper labels, polyimide tags, PET serial plates, Mylar film, high-temperature tape, and adhesive identification markers. The Mini feeder handles label widths from 5mm to 32mm — the range most serial number and barcode labels fall into.

Please provide the following three pieces of information: material photos, key dimensions (width/spacing/thickness/roller outer diameter), and machine brand and model. Yinuo will compare your selection with features from over 25 existing ASM product lines and provide a recommended solution within one business day.

No minimum customization fee. Standard modifications are free.

---

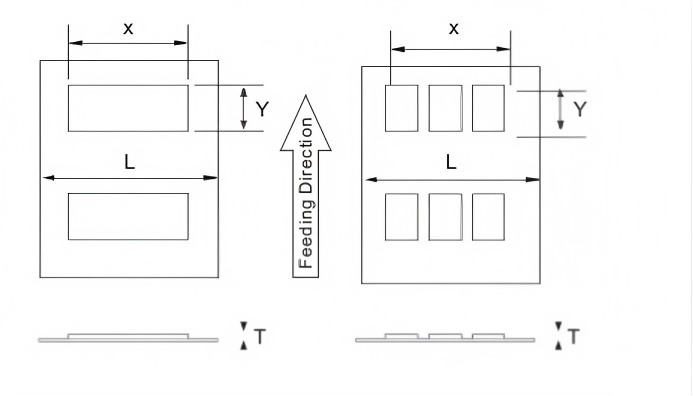

The label dimensions supported by the Yinuo label feeder are as follows:

Label Dimension	Min	Max	Unit
X — Label width	3	90	mm
Y — Label length	3	20	mm
L — Backing paper width	4	92	mm
T — Material thickness	0.05	Application dependent	mm



---
