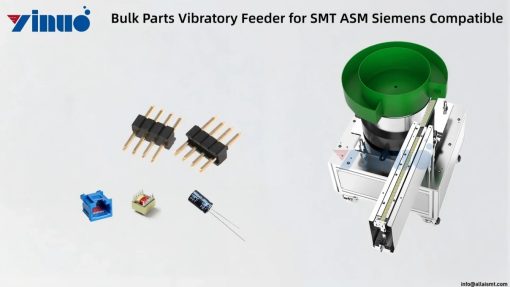

The ASM TX series bulk vibratory feeder BV-021 is a stand-alone bulk component feeding station designed to orient, separate, and transport bulk electronic components from bagged or boxed packaging to downstream assembly equipment (pick-and-place machines, chip inserters, or manual assembly stations). The ASM TX series bulk vibratory feeder BV-021 uses an electromagnetic coil motor to drive precision-designed vibratory feeders, each equipped with an output track. The system is configured based on customer-supplied sample components: a bag or box of target components is required for vibratory feeder profile measurement and track geometry calibration. Each ASM TX series bulk vibratory feeder BV-021 supports 1 to 4 vibratory feeders; the price depends on the number of vibratory feeders and track configuration.
Technical Parameters
| Dimension | Technical Spec | Standard / Remark |
| Overall Dimensions (L×W×H) | 760 × 460 × 910 mm | Floor-standing unit |
| Drive Type | AC electromagnetic coil motor | PWM amplitude control, 1% increments |
| Power Supply | 100 / 220 V AC | Dual voltage, 50/60 Hz |
| Air Pressure | 0.4 – 0.6 MPa | Pneumatic sorting gates |
| Feed Rate | 0.8 sec/pcs | Per component, after orientation |
| Unit Weight | Approx. 150 kg | Steel frame |
| Bowl Count | 1 – 4 pcs | User-specified |
| Track Count | 1 track per bowl | — |
| Component Input | Bulk (bag or box) | One sample required per bowl |
| Component Types | 1 type per bowl | Each bowl profiled to one component |
| Speed Profiles per Bowl | 10 | Stored on PWM controller |
| Bowl Orientation Rate | >98% | After profiling, first run |
| Compliance | CE | — |
| Operating Environment | 10-40°C | Vibration isolation feet included |
VB-015 Vibrating Bowl Feeder — Compatible Components
| Connectors | USB, RJ45, FPC, pin headers, board-to-board | Most common application |
| Shielding | Shield frames, shield covers, shield cans | Stamped metal parts |
| Metal Parts | Spring contacts, clips, brackets, heat sinks | Regular geometry preferred |
| Sockets | SIM, SD, TF card sockets | Must have a locatable face |
| Terminals / Contacts | Screw terminals, reed contacts, spring pins | Polarity sorting supported |
| Bulk ICs | SOP, QFP, QFN (loose pack) | Pin damage risk to verify |
| Small Components | LEDs, crystals, transistors, inductors, capacitors | Bagged or bulk |
| Non-Electronic | Screws, nuts, washers, springs | Mechanical assembly lines |
| NOT Suitable | Spherical (solder balls), sticky (pre-pasted), magnetic powder parts, >25mm longest edge, <3mm smallest edge, parts without a flat locatable surface | — |
Feature
Components exit the bowl at a fixed speed (0.8 sec/pcs), in the correct orientation, every cycle. Beyond sorting: the track can include polarity detection (optical), lead cutting (mechanical blade station), and pin straightening (forming gate). Rejected parts loop back to the bowl for re-sort. Result: parts arrive at the pick position oriented, inspected, cut, and formed — no secondary handling step
Expert FAQ
Q: What do I need to send for a bowl profile?
One bag or box of the target component. Yinuo measures it, machines the bowl track to match, and runs 2-4 hours of flow verification. Lead time from sample receipt: 10-15 business days.
Q: Can a bowl be reused for a different component later?
Yes. Yinuo re-machines the track and replaces sorting gates. Cost is 25-35% of a new bowl. If the new part is similar (e.g., same connector family, different pin count), often only gates need replacing — about 15% of new bowl cost. Turnaround 7-10 days.
Q: What happens if air pressure drops below 0.4 MPa?
Sorting gates lose force, misfeed rate spikes to 8-12%. Built-in pressure sensor triggers a red stack light and pauses vibration at 0.38 MPa. Restore air, press one button, vibration resumes. No damage during the pause.
Ordering & Support
Required: One sample bag/box per bowl
Lead Time: 10-15 business days (from sample receipt)
Shipping: DHL Express / FedEx Priority
Warranty: 12 months frame & motor, 6 months bowl track
