Product Overview

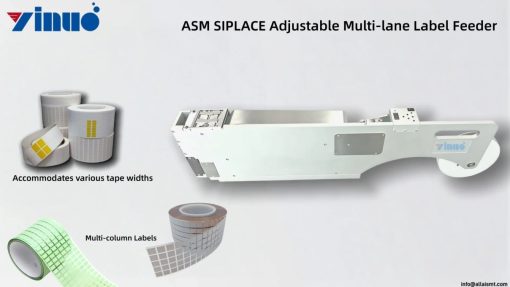

The ASM SIPLACE TX Series Multi-Lane Label Feeder LB-10472 designed specifically for the ASM SIPLACE TX series label pickup platform. It can simultaneously peel, position, and present multiple self-adhesive label strips, allowing the TX placement head to pick up labels from multiple channels in a single coordinated action, eliminating the need for multiple single-channel feeders occupying separate slots. Its material compatibility covers paper labels, FPC reinforcing sheets, polyester film, foam pads, dustproof mesh, high-temperature resistant polyimide tape, and EMI shielding film.
| Dimension | Technical Spec | Standard / Remark |
| Feeder Type | Multi-lane label feeder | Smart Feeder X interface |
| Lane Configuration | 2-4 lanes | User-specified at order |
| Label Width per Lane | 5-22 mm | Individually adjustable per lane |
| Label Pitch per Lane | 2-20 mm | Software-configured per lane |
| Total Usable Width | Up to 88 mm | 4 × 22 mm max |
| Feed Speed | 3-9 m/min per lane | Digital speed lock, recipe-stored |
| Placement Accuracy | ≤±0.25 mm | Machine-dependent |
| Pick Repeatability | ±0.10 mm per lane | 20k+ cycles stable |
| Interface | Smart Feeder X | Contactless inductive, hot-swap |
| Power Supply | Inductive coupling | No physical pin connectors |
| Lane Control | Independent per lane | Different materials, speeds per lane |
| Recipe Memory | 40+ profiles | Stored on onboard memory |
| Material Thickness | 0.05-1.0 mm | Cu foil to closed-cell foam |
| ESD Protection | Conductive body | ESD S20.20 compliant |
| Compliance | CE, RoHS | — |
| Operating Environment | 15-35°C, 20-80% RH | Factory floor ambient |

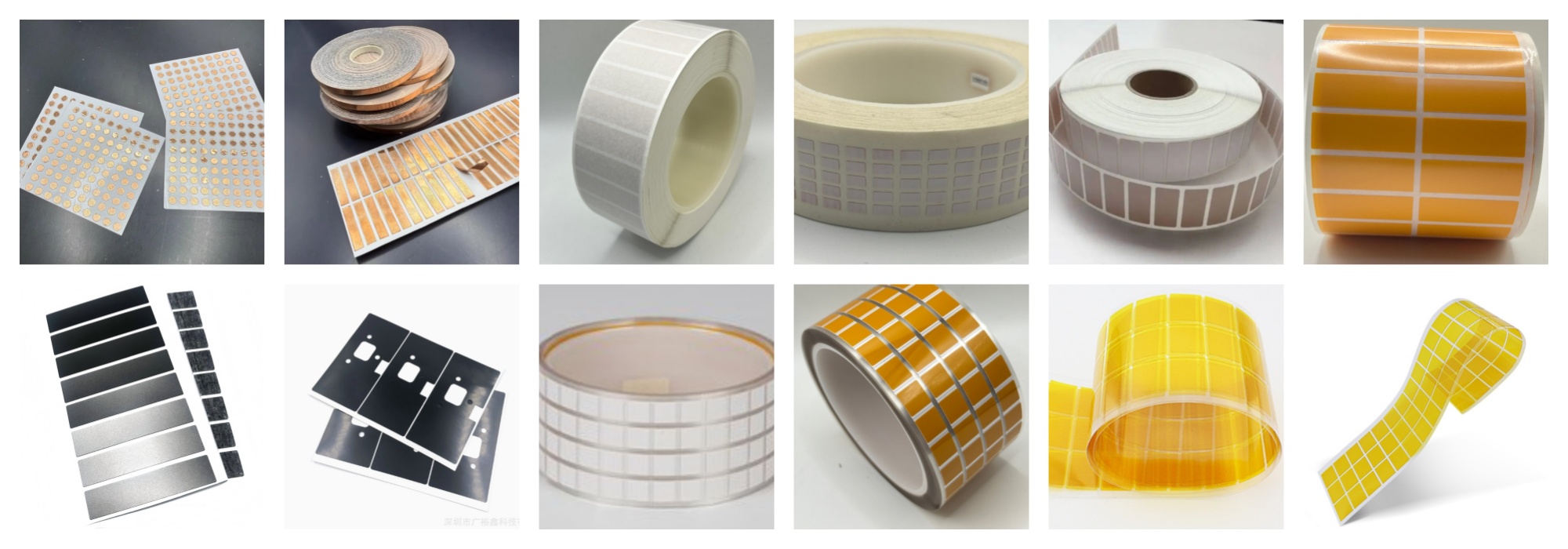

Label Types Compatible with the Label Feeder
| Label Type | Material | Typical Use |
| Paper label | Coated paper, thermal paper | Barcode, serial number, date code, batch ID |
| Polyimide (Kapton) | PI film, high-temp | High-temp process tracking, reflow-resistant labels |
| PET label | Polyester film | Product logo, rating plate, compliance mark |
| FPC stiffener | Stainless steel 0.3-0.5mm | Flex PCB reinforcement, connector backing |
| Mylar film | PET film, anti-static | Insulation layer, protective cover |
| Foam gasket | Closed-cell foam 0.5-1.0mm | Sealing, cushioning, vibration damping |
| Dust mesh | Non-woven fabric | Speaker/mic port, ventilation |
| High-temp tape | PTFE, silicone | Masking, insulation, reflow |
| EMI shielding film | Copper foil, conductive fabric | EMI/RFI shielding, grounding |
| Peel-off liner | Release paper, PET liner | Pre-cut adhesive parts, double-sided tape |
Feature
Smart Feeder X inductive coupling handles all lanes through one receiver. No physical pin connectors. Pin-based multi-lane feeders wear 4× faster due to combined motor current — drift appears in 3-5 months. LB-10472: ±0.10mm repeatability across 20,000+ insertions without recalibration. Hot-swap safe, no arc risk.
Expert FAQ
Q: Can different lanes run completely different materials simultaneously?
Yes. Each lane has an independent motor, peel plate, guide rail, and optical sensor. Lane 1 can run paper labels at 9 m/min while Lane 3 runs FPC stiffener at 4 m/min. Lane profiles are stored separately and loaded simultaneously on power-up.
Q: What happens if one lane runs out of labels while others are still feeding?
The empty lane’s sensor triggers a per-lane alert on the SIPLACE HMI. The other lanes continue feeding. The empty lane can be replenished without removing the feeder — open the lane cover, swap the roll, re-feed the strip. No machine stop. No impact on other lanes.
Q: Does the multi-lane design require additional SIPLACE software or licensing?
No. The LB-10472 uses the standard Smart Feeder X protocol. The SIPLACE controller sees it as one feeder with multiple independently addressable lanes. No additional software modules, no lane licensing fees.
Q: Can I order a 2-lane version now and upgrade to 4 lanes later?
Yes. The LB-10472 frame supports 2-4 lanes. A 2-lane unit can be factory-upgraded to 3 or 4 lanes. The upgrade requires adding lane modules (motor, peel plate, guide rail, sensor) and a firmware configuration update. Contact Yinuo for upgrade pricing and turnaround.
Ordering & Support
Required: One sample bag/box per bowl
Lead Time: 10-15 business days (from sample receipt)
Shipping: DHL Express / FedEx Priority
Warranty: 12 months frame & motor, 6 months bowl track
