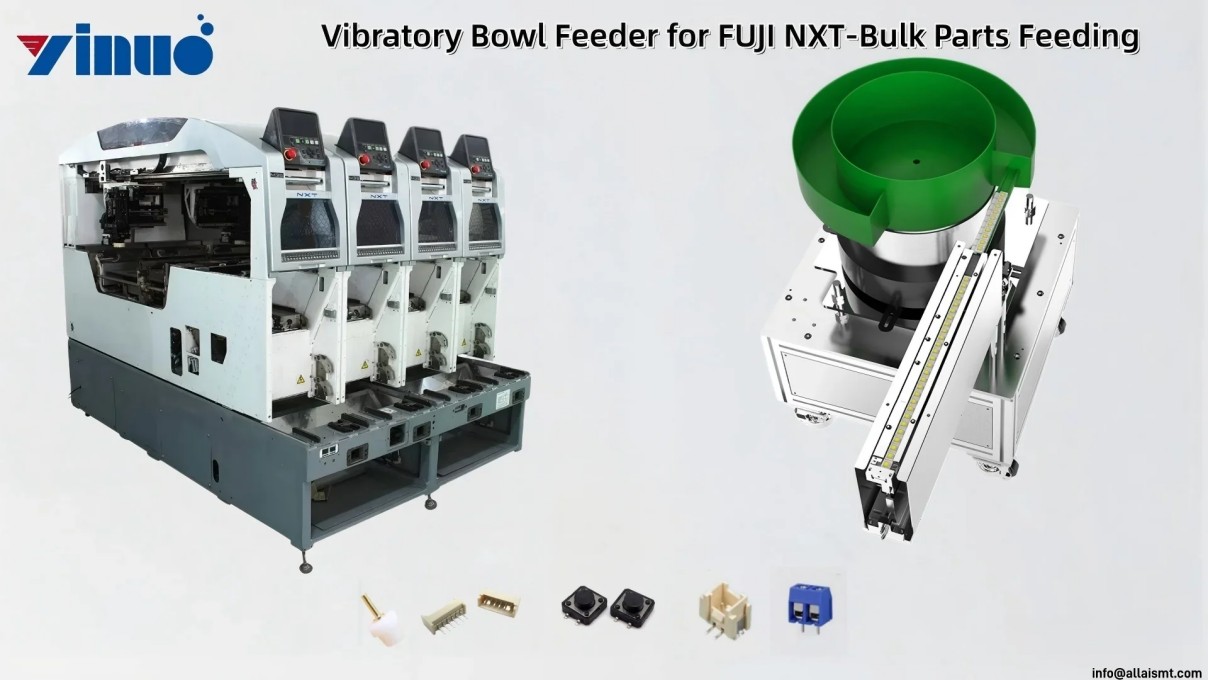

FUJI NXT Vibratory Bowl Feeder – Automated Solution for Bulk Components
The FUJI NXT Vibratory Bowl Feeder is a specialized feeding module engineered to solve the challenge of handling non-taped components on SMT lines. Designed specifically for FUJI NXT I, II, III, and AIMEX platforms, this unit automates the orientation and feeding of bulk or bagged components that possess specific geometric features—most notably connectors, metal hardware, shielding cans, and odd-form parts
If your production line is currently struggling with the inefficiency of frequent manual reloading for loose parts, this feeder provides the automation needed to stabilize your output. By utilizing high-frequency pneumatic vibration, it ensures components are aligned correctly before reaching the pick-up position, significantly reducing downtime and labor costs.
Key Benefits:
- Eliminate Manual Labor: Replaces the need for operators to constantly refill trays or tubes for small hardware.
- High-Speed Output: Capable of feeding speeds ranging from 2,000 to 6,000 CPH (depending on component symmetry).
- Native Compatibility: Installs directly into the native FUJI NXT feeder slot without adapters.
- Customizable: We offer custom bowl designs tailored to your specific connector or hardware geometry.
Ordering & Lead Time Information
- Standard Units: 5 – 10 working days.
- Custom Bowl Configurations: Approximately 45 days. (Due to the precision machining required for specific connector geometries).
Technical Specifications Table
| Parameter | Specification |
| Machine Compatibility | FUJI NXT I / NXT II / NXT III / AIMEX |
| Feeder Interface | Native FUJI NXT feeder slot (Plug & Play) |
| Component Type | Bulk / Loose / Bagged (Connectors, Hardware, etc.) |
| Output Speed (Symmetric) | 2,000 – 6,000 CPH |
| Output Speed (Asymmetric) | 1,000 – 2,000 CPH (Custom bowl required) |
| Bowl Material | Stainless Steel 304 (Standard), customizable |
| Bowl Diameter Options | 120 mm / 150 mm / 200 mm |
| Drive System | Pneumatic Vibrator (Requires 2–6 bar air pressure) |
| Feed Direction | Clockwise (Standard) / Counter-clockwise (Optional) |
| Pick-up Height Adjustment | Adjustable $ \pm$5 mm |
| Weight (Base Unit) | Approx. 3.2 kg |
| Weight (With Bowl) | Approx. 4.5 – 6.0 kg (varies by size) |
| Operating Environment | 10°C – 40°C / 30% – 80% RH (Non-condensing) |
| Warranty | 12 Months from delivery date |
Each unit undergoes rigorous testing. Below is actual footage of the equipment being tested.
What We Do for Your SMT Production Line?
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.
Tag and Tube Feeders: 2–4 weeks.
Vibratory Bowl Feeders (Custom Rails): 3–6 weeks.
MOQ: 1 unit. Each unit undergoes actual operational testing before shipment and is cleared for dispatch only after passing inspection.
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
