Product Overview

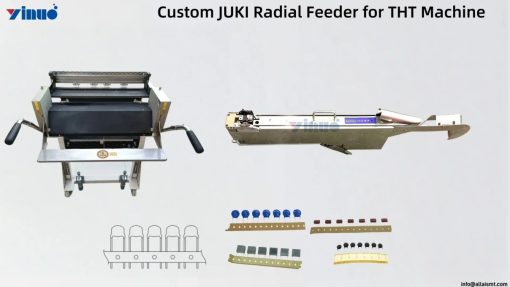

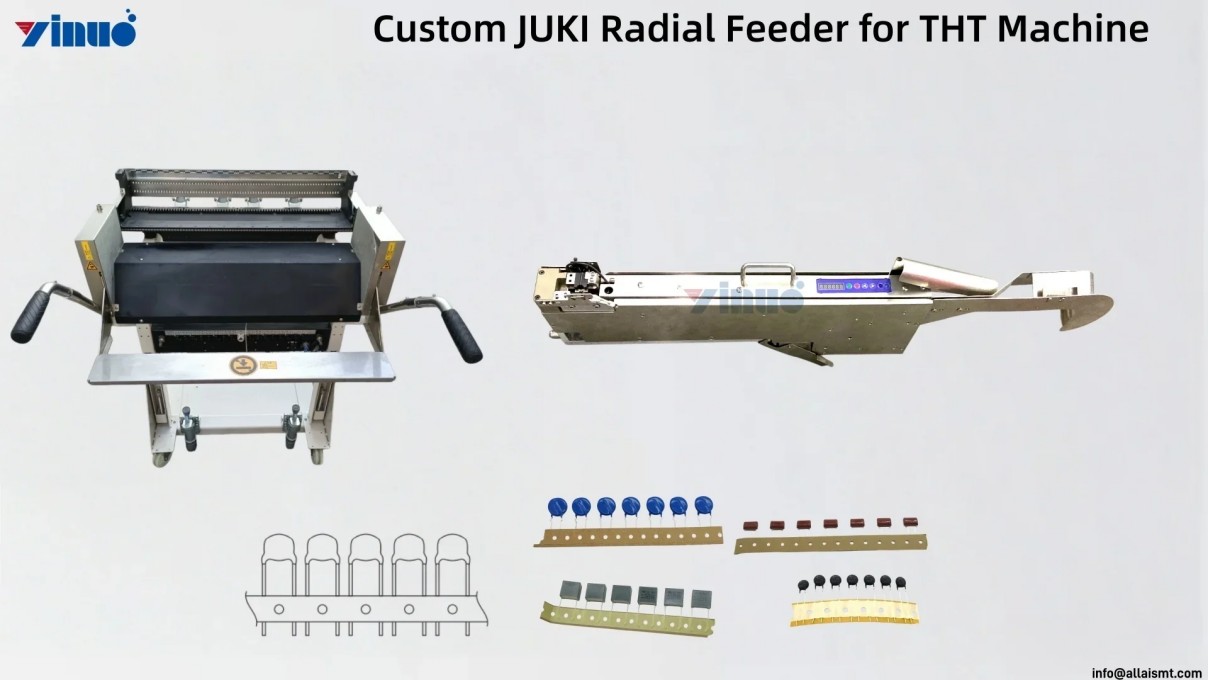

The JUKI Custom Radial Feeder is designed to feed radial through-hole components from punched carrier tape directly into JUKI insertion machines. It can integrate component feeding, lead forming, and cut-and-clinch functions into a single station, helping to reduce downstream processes, shorten cycle time, and save production line space.
Each feeder is customized based on the customer’s component specifications, including lead span, body diameter, and tape pitch. By providing component samples or drawings, customers enable us to design and manufacture the feed track, forming die, and cut-and-clinch tooling. Every unit is tested before shipment to ensure stable feeding performance prior to delivery.
Technical Specifications
| Parameter | Specification |
| Machine Compatibility | JUKI JV series, JM series (and compatible JUKI THT insertion platforms) |
| Component Type | Radial lead through-hole components |
| Standard Tape Pitch | 12.7 mm / 15 mm (custom pitch available) |
| Lead Span Range | 5 mm – 15 mm (customizable) |
| Feed Rate | 0.3 s per piece (approx. 12,000 pcs/hr) |
| Forming Function | Integrated lead forming (bend angle adjustable) |
| Trimming Function | Integrated cut-and-clinch (trim length adjustable) |
| Drive Type | Pneumatic (standard) / Electric (optional) |
| Air Pressure | 4 – 6 bar (for pneumatic version) |
| Power Supply | 24 V DC (for electric version) |
| Weight | Approx. 10-15 kg (depending on custom tooling) |
| Operating Temperature | 10°C – 40°C |
| Customization Lead Time | 20 – 35 working days after sample approval |
What It Handles
- Electrolytic capacitors (radial lead, 5 mm to 15 mm lead span)
- Radial LEDs and indicator lamps
- Radial diodes and rectifiers (1N400x series, etc.)
- Tantalum capacitors in radial format
- Ceramic disc capacitors with radial leads
- Small radial relays and switches
What We Do for Your SMT Production Line?
Backed by engineers with over a decade of experience in SMT whole-line integration, we deliver more than just custom feeders and nozzles. Our team designs complete SMT production lines,from pick-and-place and reflow to material handling,precisely configured to your specific product mix, throughput targets, and floor layout.
Our Custom Engineering & Testing Process
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.
Machine Compatibility
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.
Lead Time & MOQ
Tag and Tube Feeders: 4–7 weeks.
Tag and Tube Feeders: 4–7 weeks.
Vibratory Bowl Feeders (Custom Rails): 3–6 weeks.
MOQ: 1 unit. We support single-unit testing on your production line before scaling to mass production.
MOQ: 1 unit. We support single-unit testing on your production line before scaling to mass production.
Custom Nozzles & Integrated Shipping
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
