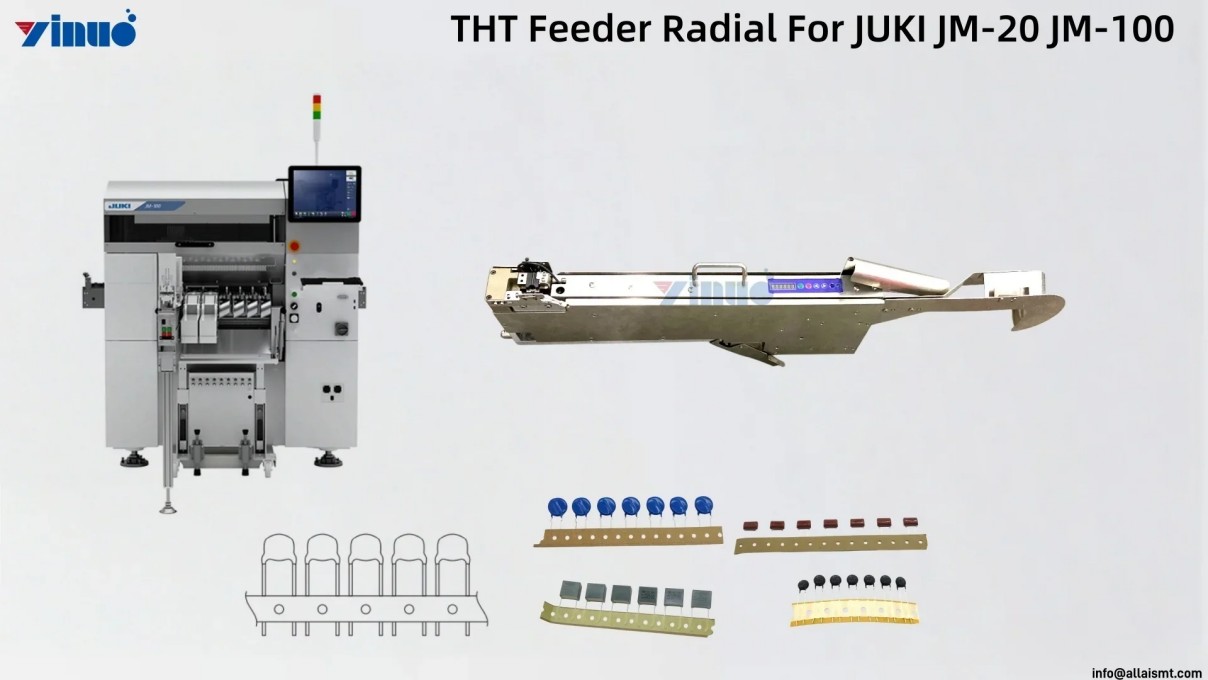

JUKI Radial Feeder for THT Inserter — Radial Component Feeding for JUKI Insertion Machines
The JUKI Radial Feeder for THT Inserter is a radial tape feeder that mounts on both JUKI THT insertion machines (JV and JM series) and JUKI pick-and-place machines with odd-form modules. It feeds radial lead components from punched carrier tape, presents them at a fixed pick-up position, and integrates lead forming and lead bending so components arrive at the placement head ready for insertion.
On THT insertion lines, this JUKI radial feeder runs at 0.3 s per piece (12,000 CPH) and handles electrolytic capacitors, radial LEDs, magnetic coils, and radial diodes from 12.7 mm or 15 mm carrier tape with lead spans from 5 mm to 15 mm.
On SMT pick-and-place lines, the same feeder solves a common problem: your board needs 1–2 through-hole components (a radial capacitor or LED) but buying a dedicated THT insertion machine is not economical. The JUKI Radial Feeder for THT Inserter mounts in the odd-form feeder slot of your JUKI RS, KE, or FX series pick-and-place machine. It forms the leads to the correct span, and the placement head inserts the component before reflow or wave soldering. One feeder replaces a full THT machine for low-volume mixed assemblies.
Each unit installs in the native JUKI feeder slot without adapter plates or electrical modifications. For non-standard dimensions, YINUO engineers the feed track and forming die to your component sample.
JUKI Radial Feeder Key Features
| # | Feature | Benefit |
| 1 | THT and SMT dual compatibility | Runs on JUKI JV/JM insertion machines and JUKI RS/KE/FX pick-and-place odd-form slots |
| 2 | Integrated lead forming and bending | Forms radial leads to PCB hole span before placement; eliminates separate pre-forming station |
| 3 | 0.3 s feed cycle | 12,000 CPH throughput matches high-volume THT assembly lines |
| 4 | 12.7/15 mm tape pitch | Covers standard radial tape formats from major component distributors |
| 5 | 5–15 mm lead span | Handles small radial LEDs up to large electrolytic capacitors |
| 6 | Native JUKI interface | Mounts directly into JV, JM, RS, KE, and FX series feeder slots without adapters |
| 7 | Custom track and forming die | Feed track and lead forming geometry engineered per component sample |
JUKI THT Feeder Radial Technical Specifications
| Parameter | Value |
| Feeder type | Radial tape feeder for THT insertion |
| Compatible machines | JUKI JV series, JUKI JM series THT insertion machines |
| Component type | Radial lead through-hole (THT) components |
| Feed speed | 0.3 s per piece (approx. 12,000 CPH) |
| Lead span range | 5 mm – 15 mm |
| Tape pitch | 12.7 mm or 15 mm (customizable) |
| Component body diameter | 4 mm – 18 mm |
| Feed mechanism | Pneumatic or electric indexing |
| Incoming material | Radial punched carrier tape on reel |
| Power requirement | 24 V DC (machine bus) or 110/220 V AC standalone |
| Weight | Approx. 4.5 kg |
| Dimensions (L×W×H) | 420 mm × 120 mm × 180 mm (standard configuration) |
| Customization scope | Lead span, body diameter, tape pitch, feed track geometry |
JUKI THT Feeder Radial Compatible Machines
THT Insertion Machines
- JUKI JV-131 (radial insertion machine)
- JUKI JV series (all radial models)
- JUKI JM series (THT insertion platforms)
SMT Pick-and-Place Machines (Odd-Form Modules)
- JUKI RS-1 / RS-1R
- JUKI KE-3010 / KE-3020 / KE-2080
- JUKI FX-3 / FX-3R
Mounting interface matches the native JUKI mechanical and electrical interface for both THT and SMT platforms. Confirm your machine model and revision when ordering.
What We Do for Your SMT Production Line?
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.
Tag and Tube Feeders: 4–7 weeks.
MOQ: 1 unit. We support single-unit testing on your production line before scaling to mass production.
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
