SMT Label Feeder for JUKI | Cuts Label Rework & Scrap

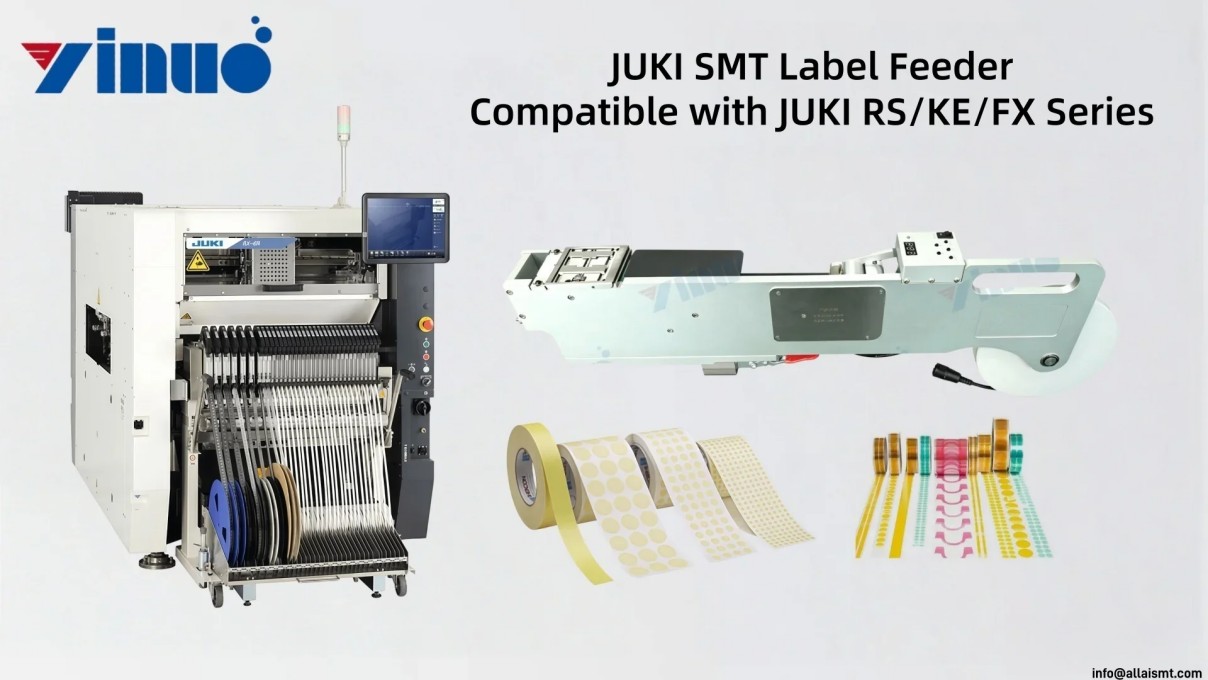

The SMT Label Feeder for JUKI is a custom label placement feeder that mounts into standard feeder slots on JUKI RS, KE, and FX series pick-and-place machines. It feeds adhesive-backed labels from a liner-backed roll, peels each label from the carrier, and presents it to the JUKI placement head for automatic application onto the PCB.

This JUKI label feeder applies barcode stickers, protective films, thermal pads, and insulation spacers at ±0.3 mm accuracy — matching the placement precision of electronic components. Labels from 3×3 mm to 50×50 mm are supported. The feeder integrates directly into the JUKI machine program: each label is assigned a part number and X-Y coordinates, just like any SMT component.

By replacing manual label placement with machine-controlled application, the label feeder for JUKI eliminates the three defects that drive rework and scrap on PCB assembly lines: misalignment, missing labels, and wrinkled films.

TL;DR — Key Specifications

• Machine compatibility: JUKI RS series, KE series, FX series pick-and-place machines

• Feeder type: SMT label feeder (liner-backed tape mechanism)

• Placement accuracy: ±0.3 mm (machine controlled vs ±1–2 mm hand placement)

• Feed speed: 2,000–4,000 CPH (single track); 4,000–8,000 CPH (multi-column)

• Label size range: 3 mm × 3 mm to 50 mm × 50 mm

• Materials handled: Barcode labels, protective films, thermal pads, insulation spacers

• Rework reduction: Eliminates manual misalignment, skew, and missing labels

Package Contents

• 1 × SMT Label Feeder for JUKI (configured for your label size)

• 1 × Precision peel plate module (matched to label thickness)

• 1 × Label roll holder (8–60 mm liner width)

• 1 × Liner waste rewind spindle

• 1 × User manual (English)

---

What We Do for Your SMT Production Line?

Backed by engineers with over a decade of experience in SMT whole-line integration, we deliver more than just custom feeders and nozzles. Our team designs complete SMT production lines,from pick-and-place and reflow to material handling,precisely configured to your specific product mix, throughput targets, and floor layout.

Our Custom Engineering & Testing Process
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.

Machine Compatibility
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.

Lead Time & MOQ
Tag and Tube Feeders: 4–7 weeks.

Vibratory Bowl Feeders (Custom Rails): 3–6 weeks.
MOQ: 1 unit. We support single-unit testing on your production line before scaling to mass production.

Custom Nozzles & Integrated Shipping
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
