SMT Auto-Switching Tube Feeder for Tube-Packaged Component Supply

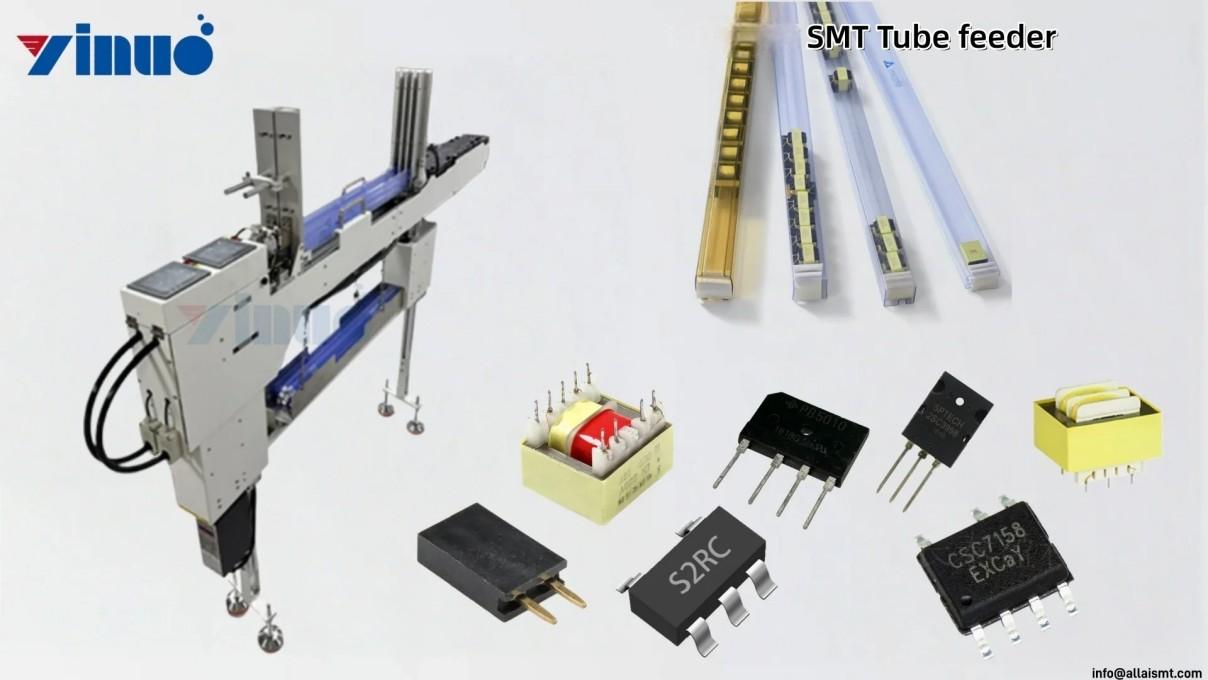

The SMT Auto-Switching Tube Feeder is a feeding module featuring automatic tube switching, designed to supply tube-packaged components to SMT placement lines with a feed rate of up to 0.6 seconds per component. It is compatible with placement platforms from major manufacturers such as FUJI, Panasonic, YAMAHA, ASM (SIPLACE), and Hanwha (formerly Samsung). The module supports both standard equipment interfaces and robotic arm integration; furthermore, it accommodates non-standard configurations, enabling deployment in mixed production environments where conventional feeders cannot operate.
How Does the Auto-Switching Tube Feeder Work?
Controlled by a PLC, the module uses fiber-optic sensors for real-time component position monitoring. A stepper motor advances tube-packaged components along the feeding channel, and a timed pulse airflow (0.4–0.6 MPa, recommended working range) delivers them to the pick-up window. Once a tube is exhausted, the system automatically switches to the standby track, minimizing manual intervention and reducing changeover-related downtime.
Upgrading an Existing Line Without a Full Overhaul
When introducing new product lines that utilize tube-fed components, or when aging feeder banks cause frequent downtime due to material replenishment, the challenge often lies in resolving the issue without reconfiguring the entire placement unit.
The auto-switching tube feeder offers a modular add-on solution that addresses this without requiring system-level modifications. Supporting standard equipment interfaces and robotic arm integration, it operates alongside existing tape and tray feeders, eliminating the need to reconfigure peripheral placement logic. The device employs PLC-controlled fiber-optic monitoring and automatic standby-track switching to handle material replenishment internally, helping to keep throughput on the rest of the line stable.
For mixed-production environments—such as those involving small-batch manufacturing, frequent product changeovers, or components incompatible with conventional feeders—this approach typically entails lower risk than a full-scale production line upgrade. It supports incremental capacity expansion, allowing enterprises to flexibly add modules as demand grows without significant upfront capital.
Key Takeaways
- Auto-switching design reduces manual tube changeover delays on SMT lines
- Compatible with FUJI, Panasonic, YAMAHA, ASM (SIPLACE), and Hanwha (formerly Samsung) platforms
- Handles tube widths from 8 mm to 32 mm for ICs, diodes, and transistors
- Feeding speed up to 0.6 sec/pcs with precise delivery to the pick-up point
- Supports robotic arm interfaces and non-standard equipment configurations
- OEM-level performance at reduced cost; 4–7 week lead time; MOQ 1 unit
Each unit undergoes rigorous testing. Below is actual footage of the equipment being tested.
What We Do for Your SMT Production Line?
Backed by engineers with over a decade of experience in SMT whole-line integration, we deliver more than just custom feeders and nozzles. Our team designs complete SMT production lines,from pick-and-place and reflow to material handling,precisely configured to your specific product mix, throughput targets, and floor layout.
Our Custom Engineering & Testing Process
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.
Machine Compatibility
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.
Lead Time & MOQ
Tag and Tube Feeders: 2–4 weeks.
Vibratory Bowl Feeders (Custom Rails): 3–6 weeks.
MOQ: 1 unit. We support single-unit testing on your production line before scaling to mass production.
Tag and Tube Feeders: 2–4 weeks.
Vibratory Bowl Feeders (Custom Rails): 3–6 weeks.
MOQ: 1 unit. We support single-unit testing on your production line before scaling to mass production.
Custom Nozzles & Integrated Shipping
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
