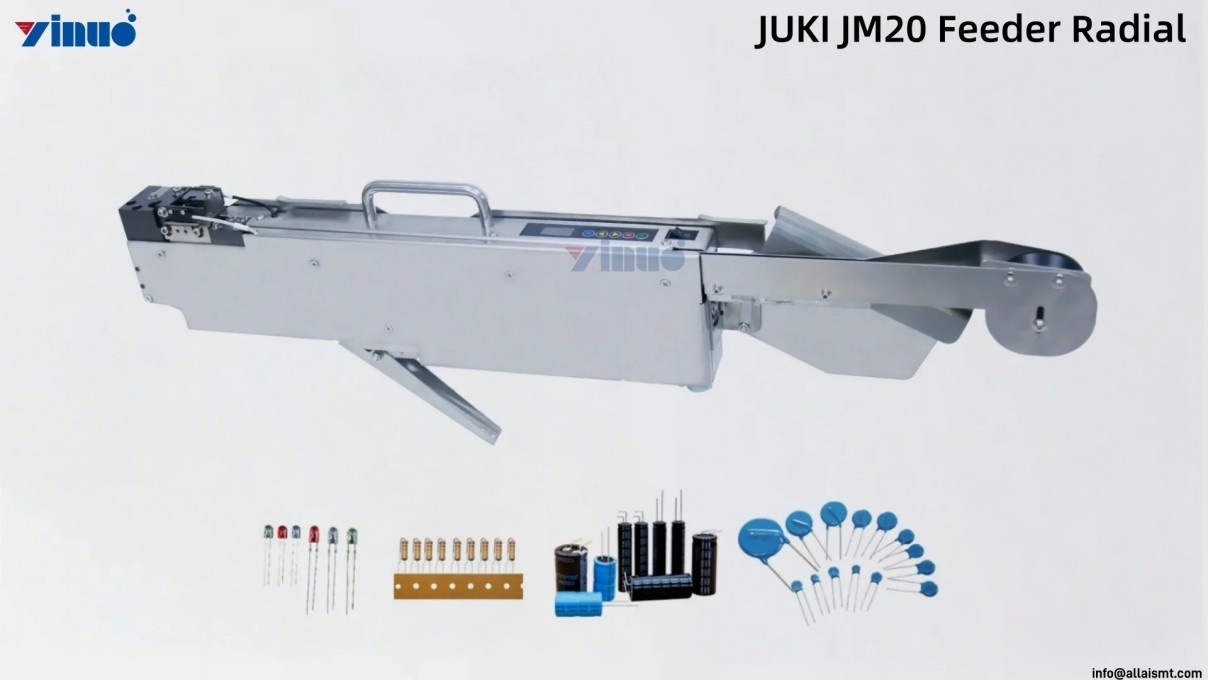

SMT Radial Feeder For JUKI THT Machine with Lead Forming Function
The SMT Radial Feeder for JUKI Machine is a customized radial tape feeder engineered for JUKI JV series and JUKI JM series THT insertion machines. It feeds radial lead components from punched carrier tape directly into the insertion head at 0.3 seconds per piece.
This JUKI radial feeder includes an integrated lead forming function that bends radial leads to match PCB hole span before insertion. The forming die angle is adjustable to accommodate different component seating heights and board thicknesses.
Compatible components: Electrolytic capacitors, magnetic coils, transistors (PNP and NPN types), PPN capacitors, varistors (voltage-dependent resistors), carbon film resistors, metal film resistors, and radial inductors.
Tape compatibility: Standard radial punched tape with 12.7 mm or 15 mm pitch. Custom pitch available on request.
Key Features
| Feature | Benefit |
| 0.3 s feed cycle | High throughput at approximately 12,000 CPH for radial component insertion |
| Integrated lead forming | Bends radial leads to PCB insertion span in the same feed cycle — no secondary forming station |
| Adjustable forming angle | Forming die adjusts from 90° to 180° lead spread to match hole span and seating height |
| Native JUKI JV/JM interface | Mounts directly into standard JUKI THT insertion machine feeder slots |
| Wide component range | Handles electrolytic capacitors, magnetic coils, transistors, varistors, resistors, and inductors |
| Custom track geometry | Engineered to your component lead span, body diameter, and tape pitch |
What the SMT Radial Feeder Handles
| Component Type | Examples | Typical Lead Span |
| Electrolytic capacitors | Aluminum electrolytic, radial tantalum | 5 mm – 15 mm |
| Magnetic coils | Inductor coils, choke coils, filter coils | 5 mm – 12 mm |
| Transistors | PNP transistors, NPN transistors, small signal transistors | 2.5 mm – 5 mm |
| PPN capacitors | Polypropylene film capacitors, polyester capacitors | 5 mm – 10 mm |
| Varistors | Zinc oxide varistors, surge suppressors | 5 mm – 15 mm |
| Resistors | Carbon film resistors, metal film resistors (radial lead) | 5 mm – 10 mm |
| Inductors | Ferrite core inductors, radial RF inductors | 5 mm – 12 mm |
Test Video for JUKI Series Feeders
What We Do for Your SMT Production Line?
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.
Tag and Tube Feeders: 4–7 weeks.
MOQ: 1 unit. We support single-unit testing on your production line before scaling to mass production.
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
