JUKI Label Feeder for SMT — 3×3 mm Labels, Multi or Single Track

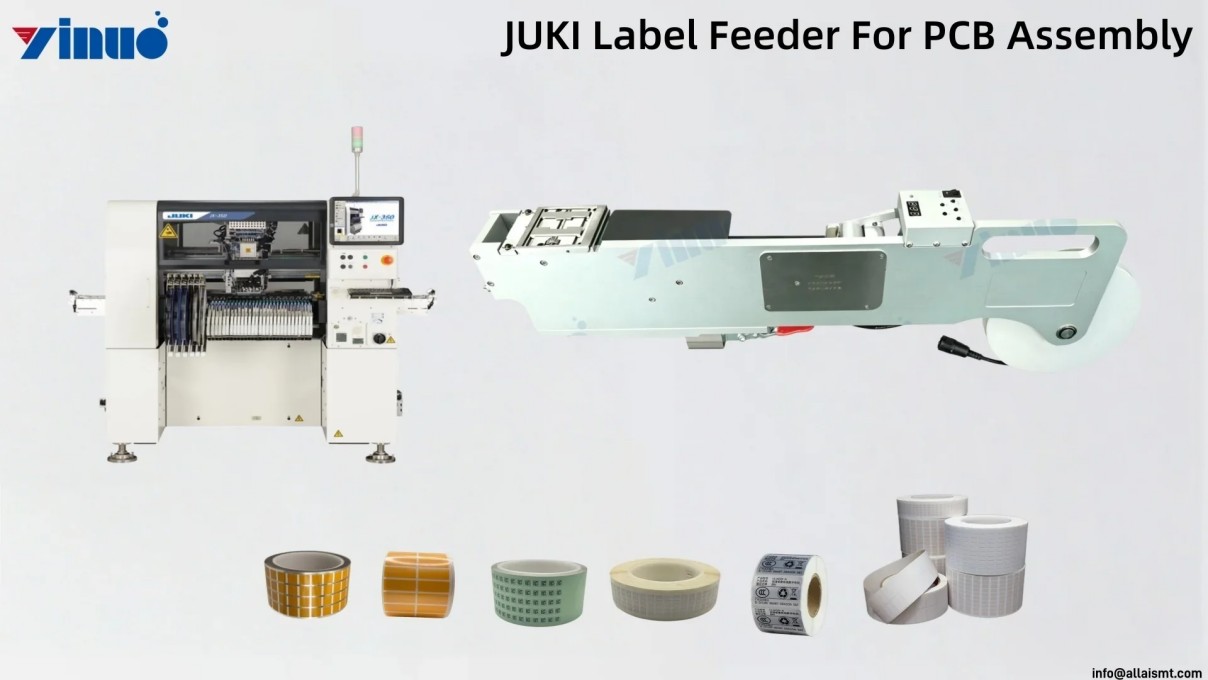

The SMT JUKI Label Feeder is a specialized tape feeder that mounts into standard JUKI pick-and-place machine feeder slots. It presents adhesive-backed labels to the placement head instead of electronic components, allowing the machine to apply barcode stickers, protective films, insulation pads, and fiducial markers automatically during the SMT assembly cycle.
This SMT label feeder is available in two configurations. The single-track version feeds one label lane from a standard liner-backed roll. The multi-column version splits the tape into 2 to 4 parallel lanes, feeding multiple labels simultaneously from one roll. Both configurations handle labels as small as 3 mm × 3 mm — small enough for mini fiducial markers, tiny serial-number stickers, and micro-insulation pads.
By integrating label application into the pick-and-place program, the JUKI label feeder eliminates manual labeling stations and keeps the full assembly process on one SMT line.
Key Specifications
| Parameter | Single-Track | Multi-Column (2–4 lanes) |
| Feeder type | SMT label feeder | SMT label feeder |
| Compatible machines | JUKI RS, KE, FX series | JUKI RS, KE, FX series |
| Number of lanes | 1 | 2, 3, or 4 |
| Minimum label size | 3 mm × 3 mm | 3 mm × 3 mm |
| Maximum label size | 50 mm × 50 mm | 30 mm × 30 mm (per lane) |
| Label thickness | 0.05 mm – 0.30 mm | 0.05 mm – 0.30 mm |
| Liner width | 8 mm – 60 mm | 16 mm – 120 mm |
| Placement accuracy | ±0.3 mm | ±0.3 mm |
| Feed speed | 2,000 – 4,000 CPH | 4,000 – 8,000 CPH |
| Peel mechanism | Mechanical peel plate with vacuum | Mechanical peel plate with vacuum |
| Feed mechanism | Stepper motor indexing | Stepper motor indexing |
| Mounting interface | Native JUKI feeder slot | Native JUKI feeder slot |
| Power requirement | 24 V DC (machine bus) | 24 V DC (machine bus) |
| Weight | Approx. 2.5 kg | Approx. 3.2 kg |
| Dimensions (L×W×H) | 320 × 90 × 140 mm | 380 × 120 × 140 mm |
| Customization scope | Label size adapter, peel plate geometry | Lane spacing, label pitch per lane |
JUKI Label Feeder Customization Process
| Step | Your Input | Our Output |
| 1 | Send label sample or roll specification | Feasibility review and quotation (24 h) |
| 2 | Confirm label size, thickness, and lane count | Peel plate and lane spacing design |
| 3 | Approve design | Prototype feeder fabrication |
| 4 | Run sample placement on your JUKI line | Peel reliability and placement accuracy validation |
| 5 | Approve prototype | Production order and shipment |
What We Do for Your SMT Production Line?
Backed by engineers with over a decade of experience in SMT whole-line integration, we deliver more than just custom feeders and nozzles. Our team designs complete SMT production lines,from pick-and-place and reflow to material handling,precisely configured to your specific product mix, throughput targets, and floor layout.
Our Custom Engineering & Testing Process
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.
Machine Compatibility
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.
Lead Time & MOQ
Tag and Tube Feeders: 4–7 weeks.
Tag and Tube Feeders: 4–7 weeks.
Vibratory Bowl Feeders (Custom Rails): 3–6 weeks.
MOQ: 1 unit. We support single-unit testing on your production line before scaling to mass production.
MOQ: 1 unit. We support single-unit testing on your production line before scaling to mass production.
Custom Nozzles & Integrated Shipping
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
The types of feeders offered by YINUO are listed in the table below:
| Category | Description |
| LABEL FEEDER | Mounts on SMT pick-and-place machines to apply labels, protective films, and thermal pads to PCBs. YINUO builds label feeders compatible with JUKI, FUJI, YAMAHA, ASM, and Panasonic platforms. |
| ASM FEEDER | Precision component delivery systems for Siemens ASM SIPLACE pick-and-place lines. YINUO supplies ASM-compatible tape, tube, and tray feeders for SIPLACE SX, X, and D series. |
| FUJI FEEDER | Delivers surface-mount components to FUJI NXT, XP, and AIMEX series placement heads. YINUO provides FUJI-compatible tape, tube, tray, and vibratory bowl feeders. |
| JUKI FEEDER | Core component delivery systems for JUKI RS, KE, FX, JV, and JM series machines. YINUO supplies tape, tube, tray, label, radial, axial, and custom odd-form feeders. |
| PANASONIC FEEDER | Serves Panasonic NPM, CM, and BM series pick-and-place machines. YINUO builds Panasonic-compatible tape, stick, and tray feeders with electric and pneumatic indexing. |
| SAMSUNG FEEDER | Supports Samsung (Hanwha) SM, SLM, and DECAN series platforms. YINUO supplies electric 8 mm feeders, dual-track tube feeders, and custom feeders for non-standard components. |
| THT CUSTOM FEEDER | Handles through-hole components on SMT odd-form modules or dedicated THT insertion machines. YINUO builds custom radial, axial, and odd-form feeders engineered to your component sample.· |
| UNIVERSAL FEEDER | Machine-agnostic feeding systems compatible with multiple pick-and-place platforms. YINUO manufactures floor-standing tube feeders, vibratory bowl feeders, and cross-brand custom solutions. |
| YAMAHA FEEDER | Mounts on YAMAHA YSM, YS, and YG series pick-and-place machines. YINUO provides YAMAHA-compatible tape, stick, and tray feeders with quiet electric options. |
