SMT Label Feeder for PCB Assembly — Custom Label Placement

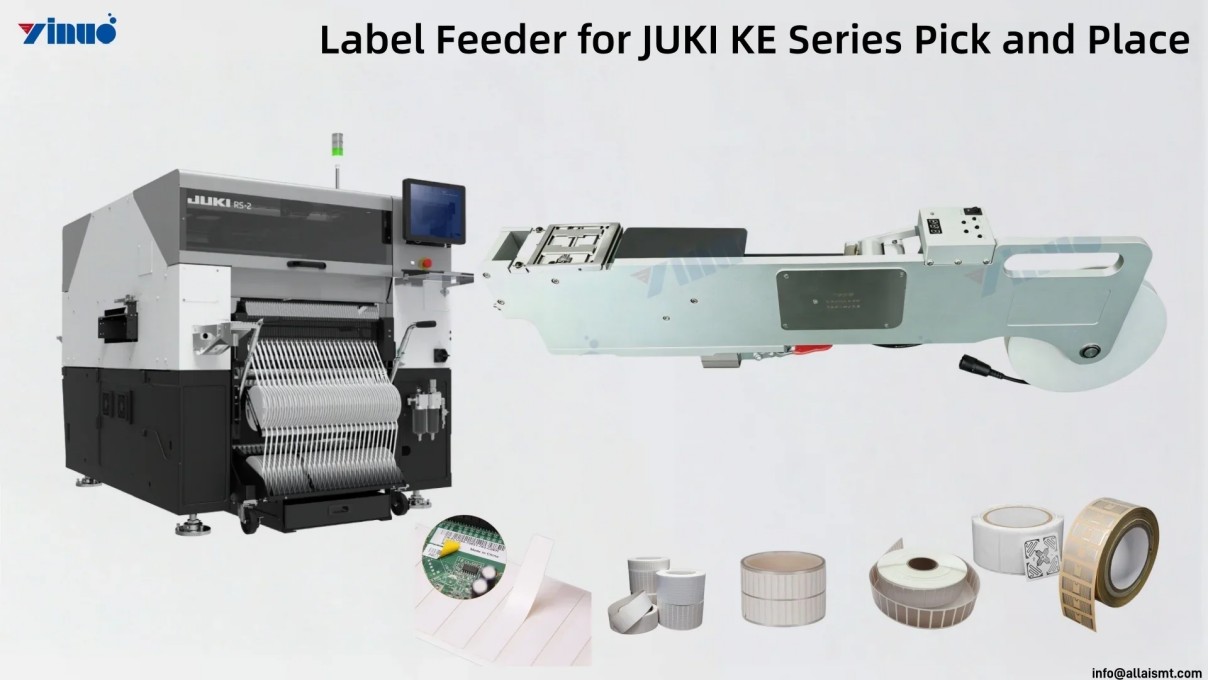

The SMT Label Feeder for PCB Assembly is a custom label placement feeder that mounts on SMT pick-and-place machines and applies adhesive-backed labels, protective films, and thermal pads to PCBs during the assembly cycle. It replaces manual labeling stations with automated, programmable placement that runs inside the normal machine cycle.
This SMT label feeder is available in two configurations. The single-track version feeds one label lane from a standard liner-backed roll, handling labels from 3×3 mm micro-markers up to 50×50 mm large pads. The multi-column version splits the tape into 2 to 4 parallel lanes, feeding multiple labels simultaneously from one roll to double or quadruple throughput.
By integrating custom label placement into the pick-and-place program, the feeder eliminates separate labeling operators, reduces placement error, and keeps the full assembly process on one machine line.
SMT Label Feeder Key Features
| Parameter | Single-Track | Multi-Column (2–4 lanes) |
| Feeder type | SMT label feeder | SMT label feeder |
| Compatible machines | JUKI, FUJI, YAMAHA, Siemens ASM, Panasonic | JUKI, FUJI, YAMAHA, Siemens ASM, Panasonic |
| Number of lanes | 1 | 2, 3, or 4 |
| Minimum label size | 3 mm × 3 mm | 3 mm × 3 mm |
| Maximum label size | 50 mm × 50 mm | 30 mm × 30 mm (per lane) |
| Label materials | Barcode paper, polyimide, PET, aluminum foil, synthetic film | Barcode paper, polyimide, PET, aluminum foil, synthetic film |
| Label thickness | 0.05 mm – 0.30 mm | 0.05 mm – 0.30 mm |
| Liner width | 8 mm – 60 mm | 16 mm – 120 mm |
| Placement accuracy | ±0.3 mm | ±0.3 mm |
| Feed speed | 2,000 – 4,000 CPH | 4,000 – 8,000 CPH |
| Peel mechanism | Mechanical peel plate with vacuum | Mechanical peel plate with vacuum |
| Feed mechanism | Stepper motor indexing | Stepper motor indexing |
| Mounting interface | Native feeder slot (brand-specific) | Native feeder slot (brand-specific) |
| Power requirement | 24 V DC (machine bus) | 24 V DC (machine bus) |
| Weight | Approx. 2.5 kg | Approx. 3.2 kg |
| Dimensions (L×W×H) | 320 × 90 × 140 mm | 380 × 120 × 140 mm |
| Customization scope | Label size adapter, peel plate geometry, machine interface | Lane spacing, label pitch per lane, machine interface |
What We Do for Your SMT Production Line?
Backed by engineers with over a decade of experience in SMT whole-line integration, we deliver more than just custom feeders and nozzles. Our team designs complete SMT production lines,from pick-and-place and reflow to material handling,precisely configured to your specific product mix, throughput targets, and floor layout.
Our Custom Engineering & Testing Process
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.
You only need to provide component samples and machine model numbers. Based on your exact part dimensions, our engineers design custom feeder adapters and CNC-machine each rail from scratch. We strictly avoid off-the-shelf parts or generic sizes to ensure optimal orientation. Before leaving our Shenzhen factory, every unit undergoes a full operational test on a matching machine, and we provide a performance video so you can verify its functionality prior to delivery.
Machine Compatibility
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.
We provide dedicated rail adapters for all major SMT brands, including ASM SIPLACE, YAMAHA, FUJI, Panasonic, JUKI, and Samsung.
Lead Time & MOQ
Tag and Tube Feeders: 4–7 weeks.
Tag and Tube Feeders: 4–7 weeks.
Vibratory Bowl Feeders (Custom Rails): 3–6 weeks.
MOQ: 1 unit. We support single-unit testing on your production line before scaling to mass production.
MOQ: 1 unit. We support single-unit testing on your production line before scaling to mass production.
Custom Nozzles & Integrated Shipping
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
We fabricate custom nozzles from ceramics, tungsten carbide, and rubber, precision-formed to match your specific part geometry while maintaining a feed failure rate below 0.5%. To streamline your procurement, feeders and nozzles are shipped together in a single package.
